SY1.3/16TF/AH pillow block bearing unit
SY 506 U/AH +YAR 206-103-2F/AH bearing
Weight: 1.2kg

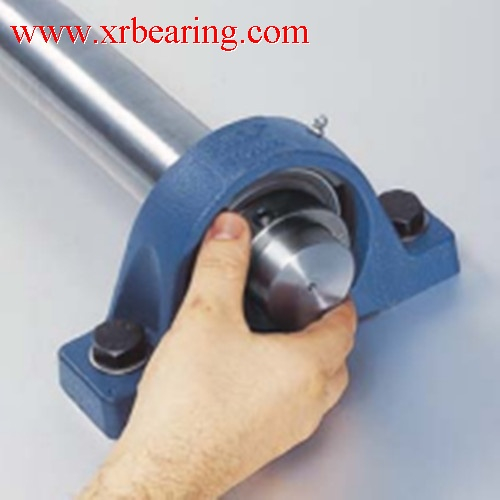

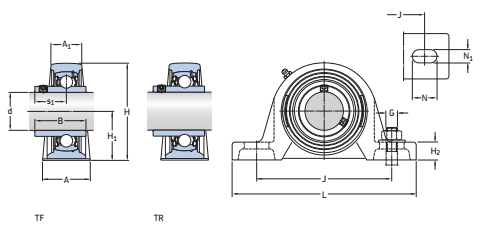

SY1.3/16TF/AH bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY1.3/16TF/AH plummer block unit consist of SY506U/AH Housing and YAR205-102-2F/AH Bearing, SY1.3/16TF/AH bearing plummer block unit can accommodate moderate initial misalignment, SY1.3/16TF/AH bearings is widely used in many industrial application, the inner diameter is 30.163mm, the outer ring is 82mm, the height is 38.1mm, the weight of SY1.3/16TF/AH bearings is 1.2kg.
SY1.3/16TF/AH bearings with a standard inner ring are designed in according with a moduar concept, each SY1.3/16TF/AH bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
Bearing insert / Radial insert ball bearing
· with an inner ring extended on both sides and grub screws (pre-assembled) for fastening the inner ring on a shaft
· smooth running and good behavior in case of tilting due to the extended inner ring
· the compensation of static misalignments is possible up to an angle of 2° due to the spherical outer surface of the outer ring
· two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter
· lubricated for life; under normal operating conditions, relubrication is not necessary
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY1.3/16TF/AH bearings, Our large quantity SY1.3/16TF/AH bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY1.3/16TF/AH bearings to your office at the first time. More technical details,please contact with:
