SY1.TR China Bearing

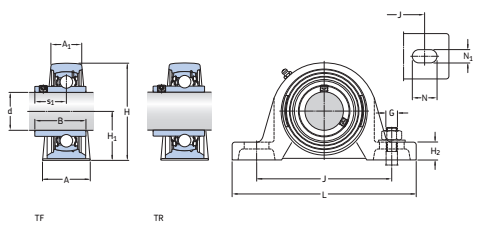

Cast Plummer block and flanged housing units SY 1. TR
YAR205-100-2RF + SY505M Y-bearing units
Weight: 0.72kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY1.TR

  • EASIER

  • YAR205-100-2RF

  • SY1.TR

  • USD$3-5

Cast Plummer block and flanged housing units SY 1. TR

YAR205-100-2RF +  SY505M Y-bearing units

Weight: 0.72kg




SY1.TR bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SY1.TR plummer block unit consist of SY505M Housing and YAR205-100-2RF Bearing, SY1.TR bearing plummer block unit can accommodate moderate initial misalignment, SY1.TR bearings is widely used in many industrial application, the inner diameter is 25.4mm, the outer ring is 70.5mm, the height is 34.1mm, the weight of SY1.TR bearings is 0.72kgSY1.TR bearings with a standard inner ring are designed in according with a moduar concept, each SY1.TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Pillow block Ball Bearing Units efficiently prevent grease from leaking out of the interior of the bearing, and perform extremely well at keeping contaminates, such as dust and water, from entering. This is achieved by installing the seal to the outer ring of the bearing and installing the slinger to the inner ring of the bearing.



Pillow block Ball Bearing Units are tapped to accept a grease fitting which is also supplied with every mounted unit. Bearings are pre-lubricated at the factory and do not require additional grease upon installation. When operating in excessively moist, dusty, or hot environments, it is recommended that grease be supplied at regular intervals. If appropriately maintained, the rated life of the bearing can be extended.


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY1.TR bearings, Our large quantity SY1.TR bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY1.TR bearings to your office at the first time. More technical details,please contact with:


E-mail: sales@xrbearing.com, brandbearings@gmail.com

Skype:brandbearings

Whatsapp: 0086-13280450757

www.xrbearing.com
