SY2.3/16TF/AH Pillow Block Bearing

SY2.3/16TF/AH Pillow Block Bearing
SY511U/AH Housing and YAR211-203-2F/AH Bearing
Weight: 3.8kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY2.3/16TF/AH
  • EASIER
  • YAR211-203-2F/AH
  • SY2.3/16TF/AH
  • USD$15-25

SY2.3/16TF/AH Pillow Block Bearing

SY511U/AH Housing and YAR211-203-2F/AH Bearing

Weight: 3.8kg

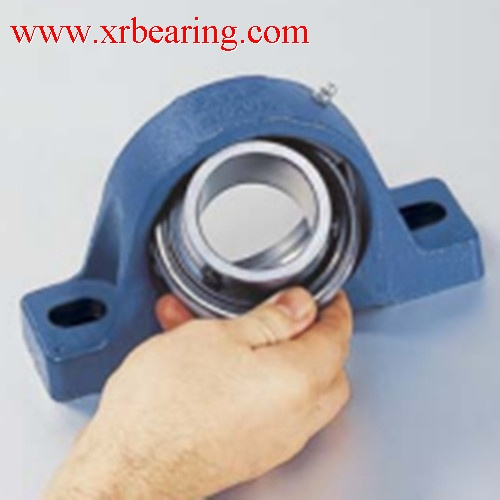

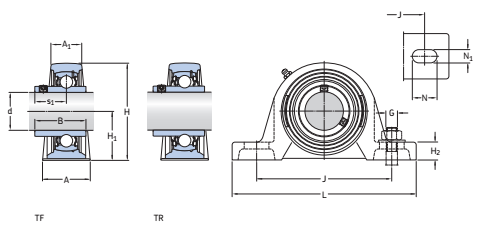

SY2.3/16TF/AH bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY2.3/16TF/AH plummer block unit consist of SY511U/AH Housing and YAR211-203-2F/AH Bearing, SY2.3/16TF/AH bearing plummer block unit can accommodate moderate initial misalignment,SY2.3/16TF/AH bearings is widely used in many industrial application, the inner diameter is 55.563mm, the outer ring is 127mm, the height is 55.6mm, the weight of SY2.3/16TF/AH bearings is 3.8kg.


SY2.3/16TF/AH bearings with a standard inner ring are designed in according with a moduar concept, each SY2.3/16TF/AH bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Ball Bearing Units have the special ability to self-align inside the housing because of the spherical shape of the  outer diameter of the bearing insert and the concave shape  of the inner diameter of the housing into which it fits.


This design allows the bearing unit to self-adjust for shaft  deviation and reduce abnormal bearing load. Therefore, the  original rated life of the bearing can be guaranteed. Since  the spherical outside surface of the bearing is precision  ground and the spherical bore of the housing is machined  by a boring machine with great accuracy, optimal fitting of  the bearing and the housing can be obtained, as well as  superior aligning performance. The allowable aligning angle  of standard ball bearing units is 3º, while units with covers is 1º


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY2.3/16TF/AH bearings, Our large quantity SY2.3/16TF/AH bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY2.3/16TF/AH bearings to your office at the first time. More technical details, please contact with:
