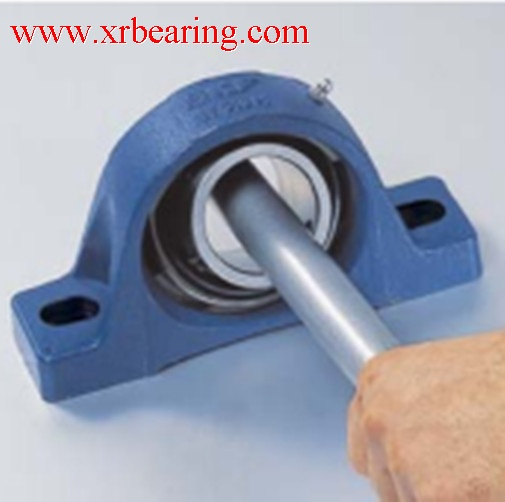

SY20FM Bearing Unit

Pillow Block Ball Bearing Unit - Two-Bolt Base, 20 mm Bore, Cast Iron Material
SY504M Housing and YET204 Bearing
Weight:0.57kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY20FM
  • EASIER
  • SY 504 M + YET 204
  • SY20FM
  • USD$5-6
Pillow Block Ball Bearing Unit - Two-Bolt Base, 20 mm Bore, Cast Iron Material

SY504M Housing and YET204 Bearing

Weight:0.57kg




SY20FM bearing plummer block units with a cast housing and an eccentric locking collar, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY20FM plummer block unit consist of SY504M Housing and YET204 Bearing, SY20FM bearing plummer block unit can accommodate moderate initial misalignment, SY20FM bearings is widely used in many industrial application, the inner diameter is 20mm,the outer ring is 65mm, the height is 31mm, the weight of SY20FM bearings is 0.59kg.


SY20FM bearings with a standard inner ring are designed in according with a moduar concept, each SY20FM bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Dimensions - SY 20 FMDimensions - SY 20 FMDimensions - SY 20 FM


Dimension

d
20 mm
d1
≈ 28.2 mm
d2
32.4 mm
A
32 mm
A1
21 mm
A5
20.5 mm
B1
30.5 mm
B4
4.75 mm
H
33.3 mm
H1
14 mm
H2
64.5 mm
J
97 mm
J
max. 106 mm
J
min. 88 mm
L
127 mm
N
11.5 mm
N1
20.5 mm
s1
23.5 mm


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY20FM bearings, Our large quantity SY20FM bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY20FM bearings to your office at the first time. More technical details, please contact with :
