SY25WF Bearing Unit

SY25WF - SKF Y-Bearing Plummer Block Unit with Eccentric Locking Collar - 25mm - Bore Size
YEL205-2F bearing + SY 505 M pillow block
GE25KRRB + ASE05
RASE25
E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY25WF
  • EASIER
  • SY 505 M
  • SY25WF
  • USD$6-10

SY25WF - SKF Y-Bearing Plummer Block Unit with Eccentric Locking Collar - 25mm - Bore Size

YEL205-2F bearing + SY 505 M pillow block

GE25KRRB + ASE05

RASE25



SY25WF bearing plummer block units with a cast housing and an eccentric locking collar, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY25WF plummer block unit consist of SY505M Housing and YEL205-2F Bearing, SY25WF bearing plummer block unit can accommodate moderate initial misalignment, SY25WF bearings is widely used in many industrial application, the inner diameter is 25mm, the outer ring is 70.5mm, the height is 44.4mm, the weight of SY25WF bearings is 0.78kgSY25WF bearings with a standard inner ring are designed in according with a moduar concept, each SY25WF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

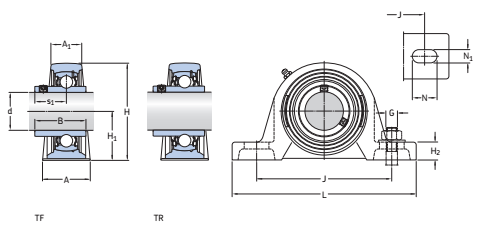

Dimensions - SY 25 WF Dimensions - SY 25 WF Dimensions - SY 25 WF

DIMENSIONS

d
25 mm
d1
≈ 33.74 mm
d2
37.4 mm
A
36 mm
A1
22 mm
A5
20.5 mm
B1
44.4 mm
B4
4.75 mm
H
36.5 mm
H1
16 mm
H2
70 mm
J
102 mm
J
max. 110 mm
J
min. 94 mm
L
130 mm
N
11.5 mm
N1
19.5 mm
s1
26.9 mm


SY25WF 25mm Bore Y-bearing Plummer Block - Cast Housing & Eccentric Locking Collar

Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions:

  • high levels of contamination

  • high speeds

  • high temperatures

  • relatively heavy loads


The SY series has two oblong holes for the attachment bolts in the base of the housing.

Y-bearing Plummer Block Units with a Cast Housing and Locking Collar: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing.


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY25WF bearings, Our large quantity SY25WF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY25WF bearings to your office at the first time. More technical details, please contact with:
