This SY5/8TF bearing is a Y-Bearing Plummer Block Unit with a bearing insert with grub screws, YAR2-2F series. The bearing's dimensions are 15.875mm Bore Size.
YAR203-010-2F insert bearing

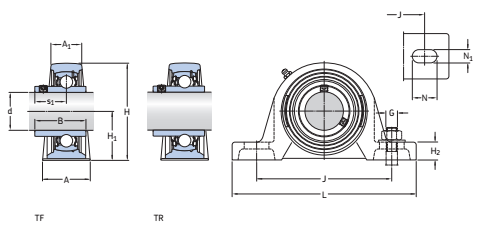

SY5/8TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY5/8TF plummer block unit consist of SY503U Housing and YAR203-010-2F Bearing, SY5/8TF bearing plummer block unit can accommodate moderate initial misalignment, SY5/8TF bearings is widely used in many industrial application, the inner diameter is 15.875mm, the outer ring is 56mm,the height is 27.4mm, the weight of SY5/8TF bearings is 0.51kg, SY5/8TF bearings with a standard inner ring are designed in according with a moduar concept, each SY5/8TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
Although its basic performance should be similar to that of deep groove ball bearings, because this kind of bearings are mostly used in rougher machinery, the installation and positioning are not accurate enough, the axis of the shaft and the seat hole are poorly aligned, or the shaft is long and deflection In the case of large-scale bearings, the accuracy of the bearing itself is not high enough, and some structures are relatively rough, so the actual performance of the deep groove ball bearing of the same specification will be discounted. For example: the outer spherical ball bearing with top wire is applied to the through shaft with large rigidity difference and large deflection. This kind of bearing has seal rings on both sides to prevent the intrusion of dirt. It has been filled before leaving the factory.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY5/8TF bearings, Our large quantity SY5/8TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY5/8TF bearings to your office at the first time. More technical details, please contact with :
