Keywords:SY50TF bearing Plummer block housing unit,SY50TF bearings

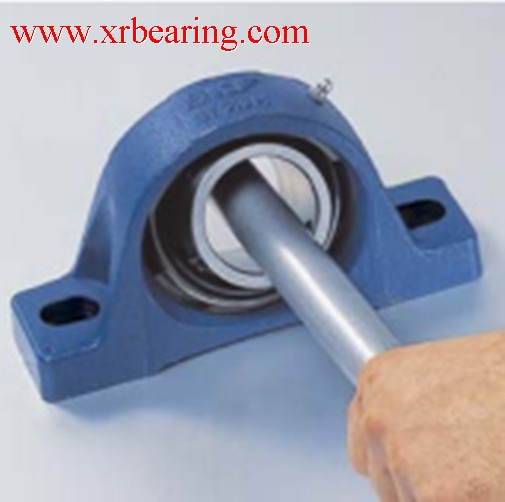

SY50TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SY50TF plummer block unit consist of SY510M Housing and YAR210-2F Bearing, SY50TF bearing plummer block unit can accommodate moderate initial misalignment,SY50TF bearings is widely used in many industrial application, the inner diameter is 50mm,the outer ring is 114.5mm,the height is 51.6mm, the weight of SY50TF bearings is 2.7kg,SY50TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SY50TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 50 mm |
| d1 |
| ≈ 62.51 mm |
| A |
| 54 mm |
| A1 |
| 34 mm |
| A5 |
| 33 mm |
| B |
| 51.6 mm |
| B4 |
| 9 mm |
| H |
| 57.2 mm |
| H1 |
| 22 mm |
| H2 |
| 114 mm |
| J |
| 157 mm |
| J |
| max. 165 mm |
| J |
| min. 149 mm |
| L |
| 203 mm |
| N |
| 18 mm |
| N1 |
| 26 mm |
| s1 |
| 32.6 mm |
Pillow Block Ball Bearing Units have the special ability to self-align inside the housing because of the spherical shape of the outer diameter of the bearing insert and the concave shape of the inner diameter of the housing into which it fits.
This design allows the bearing unit to self-adjust for shaft deviation and reduce abnormal bearing load. Therefore, the original rated life of the bearing can be guaranteed. Since the spherical outside surface of the bearing is precision ground and the spherical bore of the housing is machined by a boring machine with great accuracy, optimal fitting of the bearing and the housing can be obtained, as well as superior aligning performance. The allowable aligning angle of standard ball bearing units is 3º, while units with covers is 1º.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY50TF bearings, Our large quantity SY50TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY50TF bearings to your office at the first time.More technical details,please contact with:
