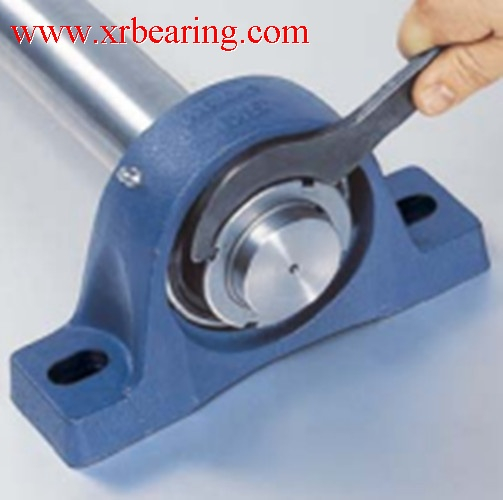

SYH2.1/4TF Bearing Unit

SYH2.1/4TF Bearing Unit

SYH512U Housing and YAR212-204-2F Bearing

Weight: 4.7kg

SYH2.1/4TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SYH2.1/4TF plummer block unit consist of SYH512U Housing and YAR212-204-2F Bearing, SYH2.1/4TF bearing plummer block unit can accommodate moderate initial misalignment, SYH2.1/4TF bearings is widely used in many industrial application, the inner diameter is 57.15mm, the outer ring is 138mm, the height is 65.1mm, the weight of SYH2.1/4TF bearings is 4.7kg.

SYH2.1/4TF bearings with a standard inner ring are designed in according with a moduar concept, each SYH2.1/4TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
