SYJ 505 Housing for SYJ1.TF Bearing

SYJ 1. TF Pillow block ball bearing units
YAR205-100-2F + SYJ505
Weight: 0.71kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ1.TF
  • EASIER
  • YAR205-100-2F
  • SYJ1.TF
  • USD$3-8

SYJ 1. TF Pillow block ball bearing units

YAR205-100-2F + SYJ505

Weight: 0.71kg




SYJ1.TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SYJ1.TF plummer block unit consist of SYJ505 Housing and YAR205-100-2F Bearing, SYJ1.TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ1.TF bearings is widely used in many industrial application, the inner diameter is 25.4mm, the outer ring is 70.5mm,the height is 34.1mm, the weight of SYJ1.TF bearings is 0.71kg.


SYJ1.TF bearings with a standard inner ring are designed in according with a moduar concept, each SYJ1.TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

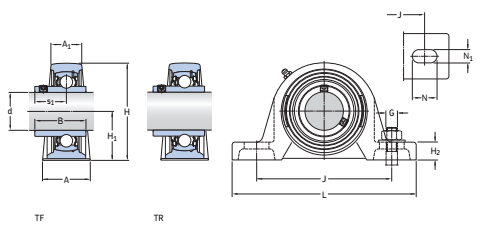

Dimensions - SYJ 1. TF Dimensions - SYJ 1. TF Dimensions - SYJ 1. TF

DIMENSIONS

d
25.4 mm
d1
≈ 33.74 mm
A
38 mm
A1
24 mm
B
34.1 mm
B4
5 mm
H
36.5 mm
H1
16 mm
H2
70 mm
J
102.5 mm
J
max. 111 mm
J
min. 94 mm
L
140 mm
N
13 mm
N1
21.5 mm
s1
19.8 mm


XRB as the experienced  China bearing manufacturer & factory & exporter & supplier, it can supply Original SYJ1.TF bearings, Our large quantity SYJ1.TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ1.TF bearings to your office at the first time. More technical details, please contact with:
