Pillow Block Ball Bearing Unit - Two-Bolt Base, 100 mm Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)
SYJ 100 TF Pillow block ball bearing units
SYJ 520 + YAR 220-2F
Two-Bolt Pillow Block Unit Setscrew Locking
UCP220 Bearing unit

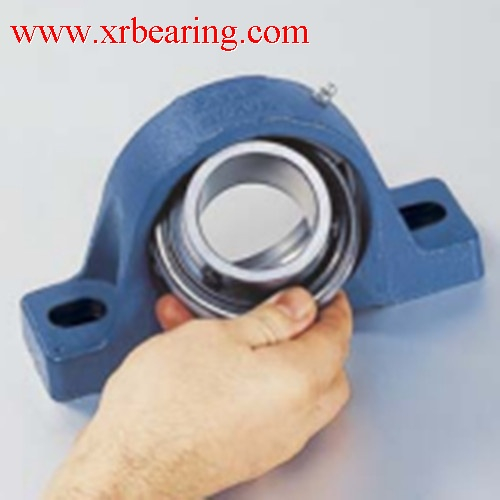

SYJ100TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ100TF plummer block unit consist of SYJ520 Housing and YAR220-2F Bearing, SYJ100TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ100TF bearings is widely used in many industrial application, the inner diameter is 100mm, the outer ring is 226mm, the height is 98.4mm, the weight of SYJ100TF bearings is 19kg, SYJ100TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SYJ100TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 100 mm |
| d1 |
| ≈ 124.8 mm |
| A |
| 95 mm |
| A1 |
| 57 mm |
| B |
| 98.4 mm |
| B4 |
| 18 mm |
| H |
| 115 mm |
| H1 |
| 38 mm |
| H2 |
| 225.5 mm |
| J |
| 308 mm |
| J |
| max. 330 mm |
| J |
| min. 286 mm |
| L |
| 380 mm |
| N |
| 26 mm |
| N1 |
| 48 mm |
| s1 |
| 63.4 mm |
Ball Bearing Units efficiently prevent grease from leaking out of the interior of the bearing, and perform extremely well at keeping contaminates, such as dust and water, from entering. This is achieved by installing the seal to the outer ring of the bearing and installing the slinger to the inner ring of the bearing.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SYJ100TF bearings, Our large quantity SYJ100TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ100TF bearings to your office at the first time. More technical details, please contact with:
