Keywords:SYJ40TF bearing Plummer block housing unit,SYJ40TF bearings

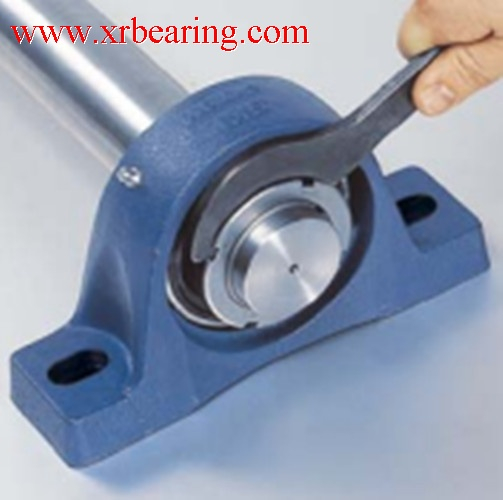

SYJ40TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ40TF plummer block unit consist of SYJ508 Housing and YAR208-2F Bearing, SYJ40TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ40TF bearings is widely used in many industrial application, the inner diameter is 40mm,the outer ring is 99mm, the height is 49.2mm, the weight of SYJ40TF bearings is 1.8kg, SYJ40TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SYJ40TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 40 mm |
| d1 |
| ≈ 51.8 mm |
| A |
| 49 mm |
| A1 |
| 31 mm |
| B |
| 49.2 mm |
| B4 |
| 8 mm |
| H |
| 49.2 mm |
| H1 |
| 18 mm |
| H2 |
| 99 mm |
| J |
| 136.5 mm |
| J |
| max. 145 mm |
| J |
| min. 128 mm |
| L |
| 184 mm |
| N |
| 17 mm |
| N1 |
| 25.5 mm |
| s1 |
| 30.2 mm
|
Proper amount of lubricant is not required to be cleaned before installation, and lubricant is not required to be added. When the jacking screw on the protruding end of the bearing inner ring is fastened on the shaft, the allowable axial load shall not exceed 20% of the rated dynamic load.
The performance of the insert ball bearing with eccentric sleeve is basically the same as that of the ball bearing with jackscrew, except that the jackscrew is not on the inner ring, but on the eccentric sleeve. The inner hole of the tapered hole outer spherical ball bearing is a tapered hole with a taper of 1:12, which can be directly installed on the tapered shaft, or installed on the optical shaft without shaft shoulder with the support of a tightening bush, and the bearing clearance can be fine adjusted.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SYJ40TF bearings, Our large quantity SYJ40TF bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ40TF bearings to your office at the first time.More technical details, please contact with:
