SYJ45TF Bearing with Wider Inner Ring

SYJ45 TF bearing Plummer block housing unit,SYJ45 TF bearings
SYJ 509 housing with YAR 209-2F bearing

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ45TF
  • EASIER
  • SYJ 509 housing
  • YAR 209-2F bearing
  • Bearing SYJ45TF price
Keywords:SYJ45 TF bearing Plummer block housing unit,SYJ45 TF bearings

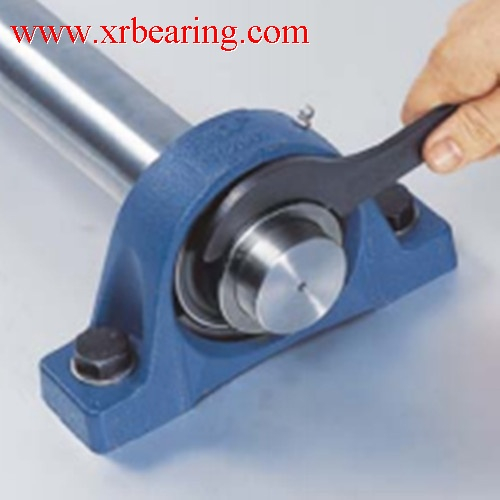

SYJ45TF pillow block bearing with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ45TF plummer block unit consist of SYJ509 Housing and YAR209-2F Bearing, SYJ45TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ45TF bearings is widely used in many industrial application, the inner diameter is 45mm, the outer ring is 107.5mm, the height is 49.2mm, the weight of SYJ45TF bearings is 2.4kgSYJ45TF bearings with a standard inner ring are designed in according with a moduar concept.


Each SYJ45TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Dimensions - SYJ 45 TF Dimensions - SYJ 45 TF Dimensions - SYJ 45 TF

DIMENSIONS

d
45 mm
d1
≈ 56.8 mm
A
52 mm
A1
36 mm
B
49.2 mm
B4
8 mm
H
54 mm
H1
20 mm
H2
107.5 mm
J
143.5 mm
J
max. 151 mm
J
min. 136 mm
L
190 mm
N
17 mm
N1
24.5 mm
s1
30.2 mm


Insert bearings, wide inner ring bearings

1. Outer ring

2. Sphered outer surface

3. Lubrication hole

4. Inner ring

5. Bore

6. Cage

7. Ball

8. Integral seal

9. Flinger

10. Eccentric locking collar

11.Grub (set) screw


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SYJ45TF bearings, Our large quantity SYJ45TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ45TF bearings to your office at the first time. More technical details, please contact with:
