SYJ65TF Bearing Manufacturer

SYJ 65 TF Pillow block ball bearing units
SYJ 513 housing with YAR 213-2F bearing insert
UCP213 Pillow Block Bearing consist of UC213 Bearing with P213 Pillow block
Weight: 5.8kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ 65 TF
  • EASIER
  • UCP213
  • SYJ 513 housing
  • Bearing SYJ65TF price

SYJ 65 TF Pillow block ball bearing units

SYJ 513 housing with YAR 213-2F bearing insert

UCP213 Pillow Block Bearing consist of UC213 Bearing with P213 Pillow block

Weight: 5.8kg

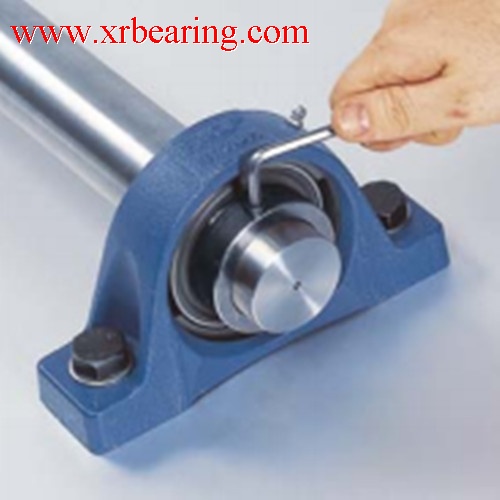

SYJ65TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ65TF plummer block unit consist of SYJ513 Housing and YAR213-2F Bearing, SYJ65TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ65TF bearings is widely used in many industrial application, the inner diameter is 65mm,the outer ring is 151mm, the height is 68.3mm, the weight of SYJ65TF bearings is 6.15kgSYJ65TF bearings with a standard inner ring are designed in according with a moduar concept.


Each SYJ65TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Dimensions - SYJ 65 TF Dimensions - SYJ 65 TF Dimensions - SYJ 65 TF

DIMENSIONS

d
65 mm
d1
≈ 82.5 mm
A
70 mm
A1
49 mm
B
68.3 mm
B4
10 mm
H
76.2 mm
H1
27 mm
H2
150.5 mm
J
203 mm
J
max. 213 mm
J
min. 193 mm
L
265 mm
N
25 mm
N1
35 mm
s1
42.9 mm


Bearing insert / Radial insert ball bearing

-- with an inner ring extended on both sides and grub screws (pre-assembled) for fastening the inner ring on a shaft

-- smooth running and good behavior in case of tilting due to the extended inner ring

-- the compensation of static misalignments is possible up to an angle of 2° due to the spherical outer surface of the outer ring

-- two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter

-- lubricated for life; under normal operating conditions, relubrication is not necessary


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SYJ65TF bearings, Our large quantity SYJ65TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our SYJ65TF bearings to your office at the first time.More technical details,please contact with:
