SYJ75TF Y-Bearing Plummer Block Unit
SYJ 515 housing with YAR 215-2F bearing insert
This SYJ75TF bearing is a Y-Bearing Plummer Block Unit with a bearing insert with grub screws, YAR2-2F series. The bearing's dimensions are 75mm Bore Size.

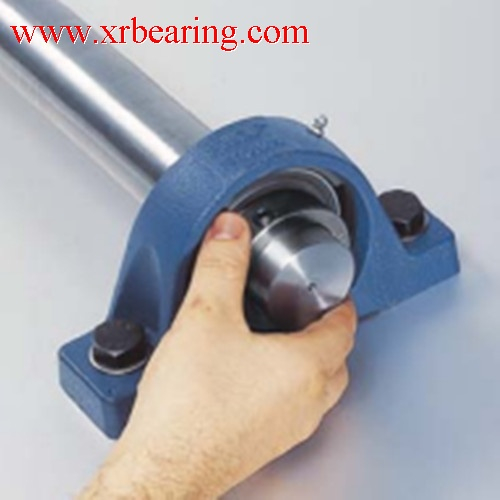

SYJ75TF pillow block bearing units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ75TF plummer block unit consist of SYJ515 Housing and YAR215-2F Bearing, SYJ75TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ75TF bearings is widely used in many industrial application, the inner diameter is 75mm, the outer ring is 166mm, the height is 73.1mm, the weight of SYJ75TF bearings is 7.3kg, SYJ75TF bearings with a standard inner ring are designed in according with a moduar concept.
Each SYJ75TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 75 mm |
| d1 |
| ≈ 92.05 mm |
| A |
| 74 mm |
| A1 |
| 54 mm |
| B |
| 73.3 mm |
| B4 |
| 12 mm |
| H |
| 82.5 mm |
| H1 |
| 28 mm |
| H2 |
| 165.5 mm |
| J |
| 217 mm |
| J |
| max. 222 mm |
| J |
| min. 212 mm |
| L |
| 275 mm |
| N |
| 25 mm |
| N1 |
| 30 mm |
| s1 |
| 46.3 mm |
