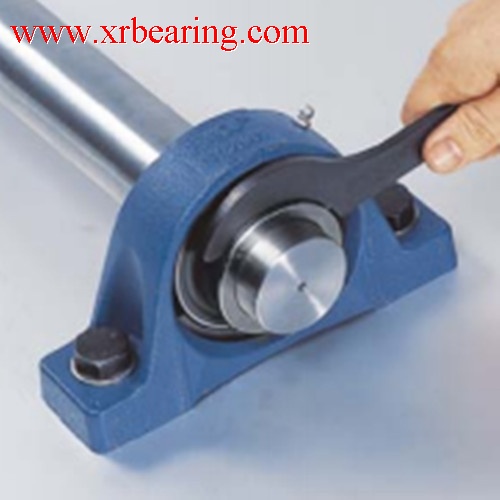

SYJ80TF Plummer Block Unit

SYJ80TF Y-Bearings Plummer Block Unit, Cast Housing
SYJ 516 housing, YAR 216-2F bearing
This SYJ80TF bearing is a Y-Bearing Plummer Block Unit with a bearing insert with grub screws, YAR2-2F series. The bearing's dimensions are 80mm Bore Size.

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ80TF
  • EASIER
  • UCP216
  • YAR 216-2F
  • Bearing SYJ80TF price

SYJ80TF Y-Bearings Plummer Block Unit, Cast Housing

SYJ 516 housing, YAR 216-2F bearing

This SYJ80TF bearing is a Y-Bearing Plummer Block Unit with a bearing insert with grub screws, YAR2-2F series. The bearing's dimensions are 80mm Bore Size.


Also known as4054366895554
GYE80KRRB + ASE16
RASEY80
SYJ80TF
UC216 + P216-J7
YAJ216 + SYJ516M




SYJ80TF Pillow block bearing units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ80TF plummer block unit consist of SYJ516 Housing and YAR216-2F Bearing, SYJ80TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ80TF bearings is widely used in many industrial application, the inner diameter is 80mm,the outer ring is 176mm, the height is 77.9mm, the weight of SYJ80TF bearings is 9.7kgSYJ80TF bearings with a standard inner ring are designed in according with a moduar concept.


Each SYJ80TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Dimensions - SYJ 80 TF Dimensions - SYJ 80 TF Dimensions - SYJ 80 TF

DIMENSIONS

d
80 mm
d1
≈ 97.4 mm
A
78 mm
A1
50 mm
B
77.8 mm
B4
12 mm
H
88.9 mm
H1
30 mm
H2
175.5 mm
J
232 mm
J
max. 242 mm
J
min. 222 mm
L
292 mm
N
25 mm
N1
35 mm
s1
47.6 mm


Bearing insert / Radial insert ball bearing

· with an inner ring extended on both sides and grub screws (pre-assembled) for fastening the inner ring on a shaft

· smooth running and good behavior in case of tilting due to the extended inner ring

· the compensation of static misalignments is possible up to an angle of 2° due to the spherical outer surface of the outer ring

· two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter

· lubricated for life; under normal operating conditions, relubrication is not necessary
