SYM 1-11/16 TF - Pillow Block Bearing

SYM 1-11/16 TF - Pillow Block Bearing

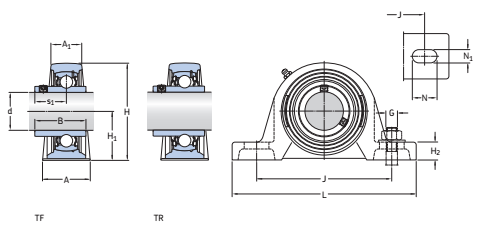

SYM510U Housing and YAR210-111-2F/AH Bearing

Weight: 3kg

SYM1.11/16 TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYM1.11/16 TF plummer block unit consist of Housing and YAR 210-111-2F Bearing, SYM1.11/16 TF bearing plummer block unit can accommodate moderate initial misalignment, SYM1.11/16 TF bearings is widely used in many industrial application, the inner diameter is 42.862mm, the outer ring is 114.5mm, the height is 51.6mm, the weight of SYM1.11/16 TF bearings is 3kg.

SYM1.11/16 TF bearings with a standard inner ring are designed in according with a moduar concept, each SYM1.11/16 TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Ball Bearing Unit are preferentially suitable for occasions requiring simple equipment and parts, and are widely used in agricultural machinery, transportation systems or construction machinery.

1. Y-bearings（insert bearings/wide inner ring bearings）

2. Y-bearing plummer block units （mounted ball bearing unit ）

3. Flanged Y-bearing units

4. Y-bearing take-up units

5. ConCentra ball bearings and units

6. Food Line Y-bearing units
