SYM2.15/16TF
EASIER
YAR216-215-2F
SYM2.15/16TF
USD$40

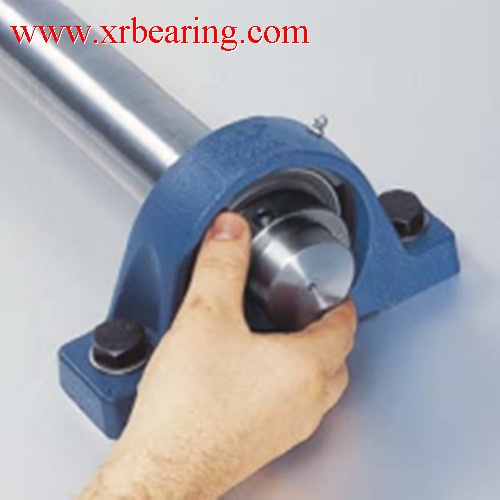

SYM 2.15/16 TF Bearing Unit Insert Bearing
SY515U Housing and YAR216-215-2F Bearing
Weight: 10.3kg

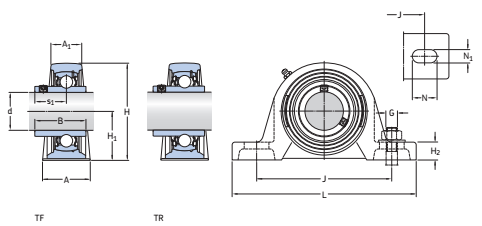

SYM2.15/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYM2.15/16TF plummer block unit consist of SY515U Housing and YAR216-215-2F Bearing, SYM2.15/16TF bearing plummer block unit can accommodate moderate initial misalignment, SY2.15/16TF bearings is widely used in many industrial application, the inner diameter is 74.613mm, the outer ring is 177mm, the height is 77.9mm, the weight of SYM2.15/16TF bearings is 10.3kg.
SYM2.15/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SYM2.15/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
Grade 10 balls, ground and honed raceways for precision, quiet running and higher speed capacity
Prelubricated with a high quality, long life lithium/calcium grease
120° set screw angle for minimum inner distortion and knurled cup point set screws for increased vibration resistance
Cast iron with multi-purpose contact seals
