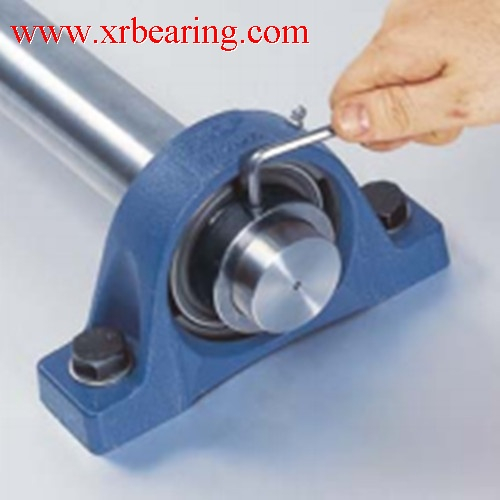

SYM1.15/16TF Bearing Unit

SYM1.15/16TF Y Bearing Unit

SYH511U Housing and YAR211-115-2F Bearing

Weight: 4kg

SYM1.15/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYM1.15/16TF plummer block unit consist of SYH511U Housing and YAR211-115-2F Bearing, SYM1.15/16TF bearing plummer block unit can accommodate moderate initial misalignment, SYM1.15/16TF bearings is widely used in many industrial application, the inner diameter is 49.212mm,the outer ring is 127mm,the height is 55.6mm, the weight of SYM1.15/16TF bearings is 4kg.

SYM1.15/16TF bearings with a standard inner ring are designed in according with a moduar concept,each SYM1.15/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow block Bearing & housing Unit

-- housing with long base for mounting on flat surfaces

-- extremely robust cast iron housing

-- with integrated lubrication nipple, if difficult operating conditions make relubrication necessary

-- the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil
