SYM2.3/16TF Insert Bearing Unit

SYM2.3/16TF Insert Bearing Unit

SY512U Housing and YAR212-203-2F Bearing

Weight: 5.45kg

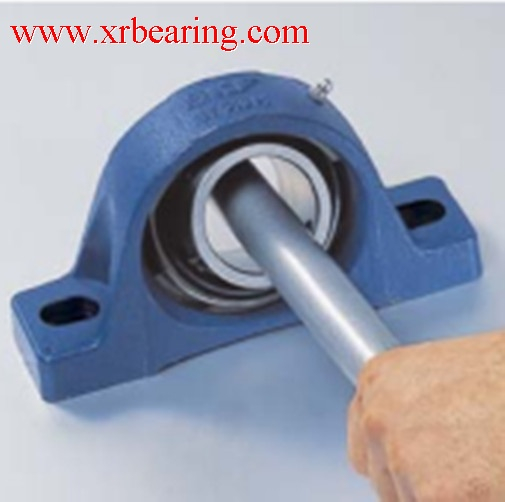

SYM2.3/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYM2.3/16TF plummer block unit consist of SY512U Housing and YAR212-203-2F Bearing, SYM2.3/16TF bearing plummer block unit can accommodate moderate initial misalignment, SYM2.3/16TF bearings is widely used in many industrial application, the inner diameter is 55.563mm, the outer ring is 139.5mm, the height is 65.1mm, the weight of SYM2.3/16TF bearings is 5.45kg.

SYM2.3/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SYM2.3/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
