NCF2234 V Bearing

  • NCF2234 V

  • Bearing NCF2234 V price

Keywords:NCF2234 V bearing,NCF2234 V full-complement cylindrical roller bearing

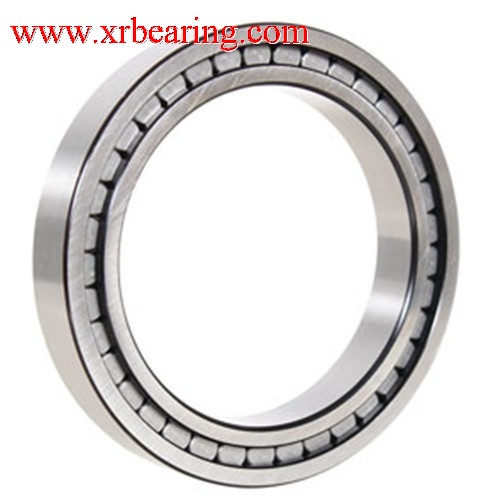

NCF2234 V bearing is single row full-complement
Cylindrical roller bearing   and commonly type and widely used in many application which need very high capacity and load, it contains inner ring, outer ring but without cage,so this special design   determine it can carry high capacity but low speed than the normal cylindrical roller bearing with cage,it can carry radial and axial loads in both directions.

NCF2234 V bearing suitable for high and middle high capacity,but low cost maintenance.EASIER as one of the biggest top quality bearing brand,Quality can be approved by the market.

Good price   NCF2234 V single row full-complement Cylindrical roller bearing

High capacity Full-complement Cylindrical roller bearing
  NCF2234V  Bearing

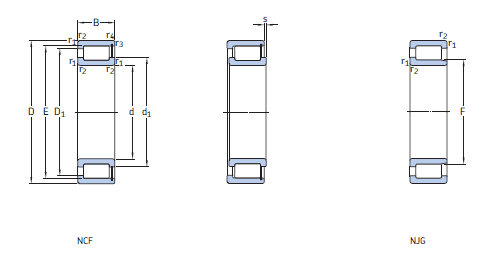

170×310×86mm bearing
                 NCF2234 V Bearing type cylindrical roller bearing
 inner diameter 170mm
outer diameter 310mm
width diameter 86mm
    NCF2234 V Cylindrical roller  bearing weight 28.5kg
 bearing are available from many design, variants, series and size,

 full complement cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

► NCF2234 V bearing with brass cage can accommodate very heavy radial loads and very high speeds,

► NCF2234 V cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

►cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
 Full-complement cylindrical roller bearings.
cylindrical roller bearing
NCF2234 V
Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating:314kN
static load rating:560kN
Fatigue load limit:60kN
Reference speed:1200r/min
limiting speed: 1500r/min
 NCF2234 V bearing are widely used in industry area: ►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction


XRB is the
NCF2234 V bearing exporter & supplier,it can supply NCF2234 V bearing, Our large quantity single row full complement Cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find NCF2234 V Bearing, the other type and brand cylindrical roller bearing :

Full complement cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing
SL Full-complement cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NCF2234 V bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
