cylindrical roller bearing N303 ECP

  • bearing N303 ECP

  • N303 ECP bearing price

Keywords:N303 ECP bearing,N303 ECP Cylindrical roller bearing

N303 ECP bearing is Cylindrical roller bearing and commonly type and widely used in many application like the spindle of machine, it contains inner ring, outer ring,and steel & brass & nylon cage,cylindrical roller bearing can carry radial and axial loads in both directions,N303 ECP Cylindrical roller bearings are particularly versatile and are simple in design, separable,N303ECP suitable for high and middle high capacity,but low cost maintenance.


High precision N303 ECP  Cylindrical roller bearing
High precision Cylindrical roller bearing
N303 ECP Bearing,
17×47×14mm bearing
N303 ECP Bearing type cylindrical roller bearing
roller bearing inner diameter 17mm
roller bearing outer diameter 47mm
roller bearing width diameter 14mm
N303 ECP Cylindrical roller  bearing weight 0.12kg
bearing are available from many design, variants, series and size,

► N303 ECP cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

N303 ECP bearing  with a cage can accommodate very heavy radial loads and very high speeds,

►N303 ECP cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

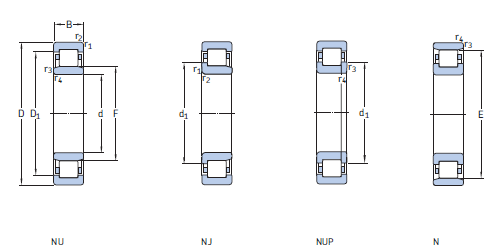

►cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
Design:
cylindrical roller bearing N303 ECP
Metarial:High quality chrome steel
Lubrication:Oil or grease
sealed:Rubber sealed or press steel shielded
dynamic load rating: 24.6kN
static load rating:20.4kN
Fatigue load limit:2.55kN
Reference speed:15000r/min
limiting speed: 20000r/min
 N303 ECP bearing are widely used in industry area:
►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction





































XRB is the N303 ECP China bearing manufacturer & factory & exporter & supplier ,it can supply N303 ECP bearing, Our large quantity cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.


Also you can find the other type and brand cylindrical roller bearing :

NJ cylindrical roller bearing
N cylindrical roller bearing
NUP cylindrical roller bearing
NF cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our N303 ECP bearing to your office at the first time.

E-mail: brandbearings@gmail.com, Skype:brandbearings
