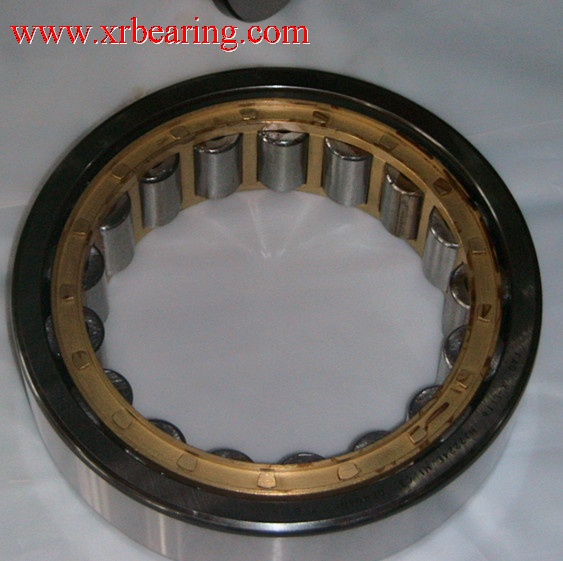

NCF2326ECJB Bearing

  • NCF2326ECJB

  • Bearing NCF2326ECJB price

Keywords:NCF2326ECJB bearing,NCF2326ECJB cylindrical roller bearing

NCF2326ECJB bearing is high capacity
Cylindrical roller bearing   and commonly type and widely used in many application like the industrial gearbox,gearbox in wind turbines and mining equipment, it contains inner ring, outer ring,and steel & brass & nylon cage,cylindrical roller bearing can carry radial and axial loads in both directions

NCF2326ECJB bearing (brass cage) suitable for high and middle high capacity,but low cost maintenance.EASIER as one of the biggest top quality bearing brand,Quality can be approved by the market.



Good price  NCF2326ECJB  Cylindrical roller bearing,NCF2326ECJB Bearing

High capacity Cylindrical roller bearing

NCF2326ECJB Bearing
130×280×93mm bearing
                                NCF2326ECJB Bearing type cylindrical roller bearing
roller bearing inner diameter 130mm
roller bearing outer diameter 280mm
roller bearing width diameter 93mm
   NCF2326ECJB Cylindrical roller  bearing weight 29kg
bearing are available from many design, variants, series and size,

cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

NCF2326ECJB bearing with brass cage can accommodate very heavy radial loads and very high speeds,

► NCF2326ECJB cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

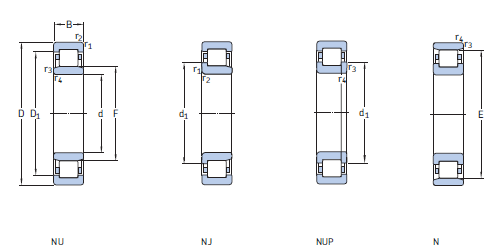

►cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
Full-complement cylindrical roller bearings.
Design:
cylindrical roller bearing
NCF2326ECJB
Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating:1120kN
static load rating:1340kN
Fatigue load limit:146kN
Reference speed:2400r/min
limiting speed: 3400r/min
NCF2326ECJB bearing are widely used in industry area: ►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction








































XRB is the
NCF2326ECJB China bearing manufacturer & factory & exporter & supplier ,it can supply NCF2326ECJB bearing, Our large quantity high capacity Cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find NCF2326ECJB Bearing, the other type and brand cylindrical roller bearing :

NJ cylindrical roller bearing
N cylindrical roller bearing
NUP cylindrical roller bearing
NF cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing
SL Full-complement cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NCF2326ECJB bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
