NJ322 ECM bearing

  • NJ322 ECM bearing

  • Bearing NJ322 ECM price

Keywords:NJ322 ECM bearing,NJ322 ECM cylindrical roller bearing

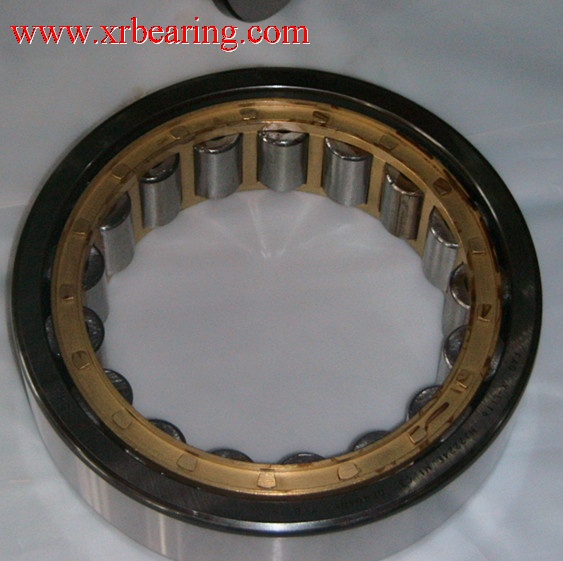

NJ322 ECM bearing is
Cylindrical roller bearing and commonly type and widely used in many application like the spindle of machine, it contains inner ring, outer ring,and steel & brass & nylon cage,cylindrical roller bearing can carry radial and axial loads in both directions, NJ322 ECM Cylindrical roller bearings are particularly versatile and are simple in design,separable,bearing NJ322 ECM suitable for high and middle high capacity,but low cost maintenance.

High precision
NJ322 ECM Cylindrical roller bearing
High precision Cylindrical roller bearing
NJ322 ECM  Bearing
110×240×50mm bearing
NJ322 ECM Bearing type cylindrical roller bearing
roller bearing inner diameter 110mm
roller bearing outer diameter 240mm
roller bearing width diameter 50mm
NJ322 ECM Cylindrical roller  bearing weight 10.5kg
bearing are available from many design, variants, series and size,

NJ322 ECM cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

NJ322 ECM bearing with a cage can accommodate very heavy radial loads and very high speeds,

►NJ322 ECM cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

►cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
cylindrical roller bearing NJ322 ECM
Metarial:High quality chrome steel
Lubrication:Oil or grease
sealed:Rubber sealed or press steel shielded
dynamic load rating: 530kN
static load rating:540kN
Fatigue load limit:61kN
Reference speed:3000r/min
limiting speed: 3400r/min
NJ322 ECM bearing are widely used in industry area: ►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction

XRB is the
NJ322 ECM China bearing manufacturer & factory & exporter & supplier ,it can supply NJ322 ECM bearing, Our large quantity NJ322 ECM  cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find NJ322 ECM Bearing, the other type and brand cylindrical roller bearing :

NJ cylindrical roller bearing
N cylindrical roller bearing
NUP cylindrical roller bearing
NF cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing
SL Full-complement cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality NJ322 ECM bearing to your office at the first time.
