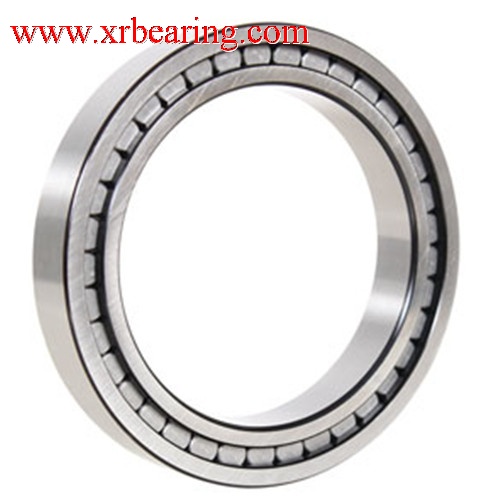

NJG2352 VH Bearing

  • NJG2352 VH

  • Bearing NJG2352 VH price

Keywords:NJG2352 VH bearing,NJG2352 VH full-complement cylindrical roller bearing

NJG2352 VH bearing is single row full-complement
Cylindrical roller bearing   and commonly type and widely used in many application which need very high capacity and load, it contains inner ring, outer ring but without cage,so this special design   determine it can carry high capacity but low speed than the normal cylindrical roller bearing with cage,it can carry radial and axial loads in both directions.

NJG2352 VH bearing suitable for high and middle high capacity,but low cost maintenance.EASIER as one of the biggest top quality bearing brand,Quality can be approved by the market.

Good price  NJG2352 VH single row full-complement Cylindrical roller bearing

High capacity full-complement Cylindrical roller bearing
NJG2352VH  Bearing
260×540×165mm bearing
                                      NJG2352 VH Bearing type cylindrical roller bearing
 inner diameter 260mm
outer diameter 540mm
width diameter 165mm
                  NJG2352 VH Cylindrical roller  bearing weight 177kg
 bearing are available from many design, variants, series and size,

 full complement cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

► NJG2352 VH bearing with brass cage can accommodate very heavy radial loads and very high speeds,

► NJG2352 VH cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

► cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
 Full-complement cylindrical roller bearings.
cylindrical roller bearing
NJG2352 VH
Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating:3580kN
static load rating:5000kN
Fatigue load limit:430kN
Reference speed:430r/min
limiting speed: 530r/min
 NJG2352 VH bearing are widely used in industry area: ►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction


XRB is the
NJG2352 VH bearing exporter & supplier,it can supply NJG2352 VH bearing, Our large quantity single row full complement Cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find NJG2352 VH Bearing, the other type and brand cylindrical roller bearing :

Full complement cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing
SL Full-complement cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NJG2352 VH bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
