NU12/500 MA Bearing

  • NU12/500 MA

  • Bearing NU12/500 MA price

Keywords:NU12/500 MA bearing,NU12/500 MA cylindrical roller bearing

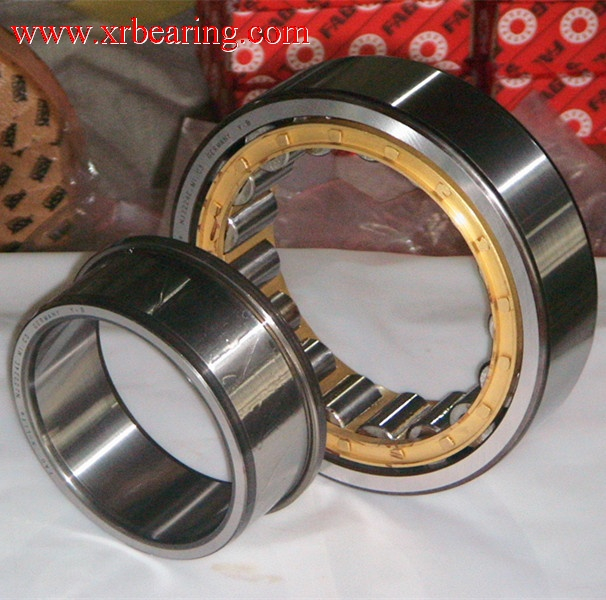

NU12/500 MA bearing is
Cylindrical roller bearing   and commonly type and widely used in many application like the spindle of machine, it contains inner ring, outer ring,and steel & brass & nylon cage,cylindrical roller bearing can carry radial and axial loads in both directions, NU12/500 MA Cylindrical roller bearings are particularly versatile and are simple in design,separable,EASIER also supply single-row full-complement cylindrical roller bearing,double-row cylindrical roller bearings,double-row cylindrical roller bearings.XRB can supply normal clearance,C2,C3,C4,C5 clearance. bearing NU12/500 MA (brass cage) suitable for high and middle high capacity,but low cost maintenance.EASIER as one of the biggest top quality bearing brand,Quality can be approved by the market.


Good price  NU12/500 MA Cylindrical roller bearing,NU12/500 MA Bearing

High precision Cylindrical roller bearing

NU12/500MA Bearing
500×920×185mm bearing
                                 NU12/500 MA Bearing type cylindrical roller bearing
roller bearing inner diameter 500mm
roller bearing outer diameter 920mm
roller bearing width diameter 185mm
                NU12/500 MA Cylindrical roller  bearing weight 585kg
bearing are available from many design, variants, series and size,

cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

►NU12/500 MA bearing with brass cage can accommodate very heavy radial loads and very high speeds,

NU12/500 MA cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

►cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
Full-complement cylindrical roller bearings.
Design:
cylindrical roller bearing NU12/500 MA
Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating: 5280kN
static load rating:8500kN
Fatigue load limit:620kN
Reference speed:670r/min
limiting speed: 950r/min
NU12/500 MA bearing are widely used in industry area: ►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction








































XRB is the
NU12/500 MA China bearing manufacturer & factory & exporter & supplier ,it can supply NU12/500 MA bearing, Our large quantity NU12/500 MA Cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

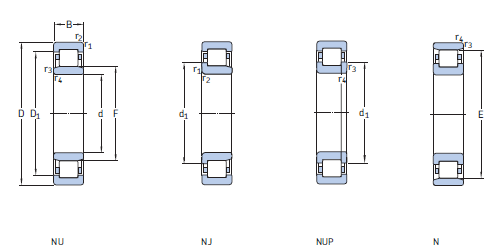

Also you can find NU12/500 M Bearing, the other type and brand cylindrical roller bearing :

NJ cylindrical roller bearing
N cylindrical roller bearing
NUP cylindrical roller bearing
NF cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing
SL Full-complement cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NU12/500 MA bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
