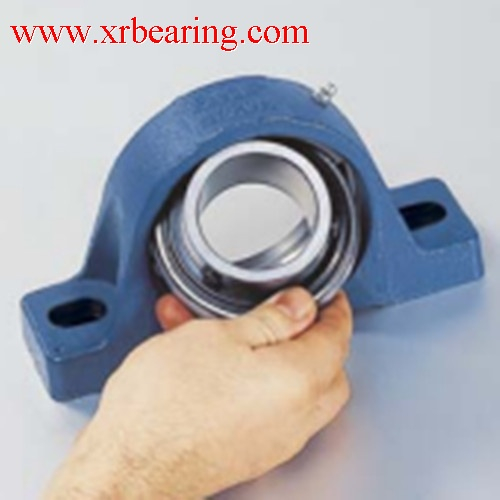

SY 25 FM Pillow Block Ball Bearing Unit

SY 25 FM Pillow Block Ball Bearing Unit - Two-Bolt Base, 25 mm Bore, Cast Iron Material

SY505M Housing and YET205 Bearing

Weight: 0.72kg

SY25FM bearing plummer block units with a cast housing and an eccentric locking collar, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY25FM plummer block unit consist of SY505M Housing and YET205 Bearing, SY25FM bearing plummer block unit can accommodate moderate initial misalignment, SY25FM bearings is widely used in many industrial application, the inner diameter is 25mm,the outer ring is 70.5mm, the height is 31mm, the weight of SY25FM bearings is 0.72kg.

SY25FM bearings with a standard inner ring are designed in according with a moduar concept, each SY25FM bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Pillow block housing

-- housing with long base for mounting on flat surfaces

-- extremely robust cast iron housing

-- with integrated lubrication nipple, if difficult operating conditions make relubrication necessary

-- the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil
