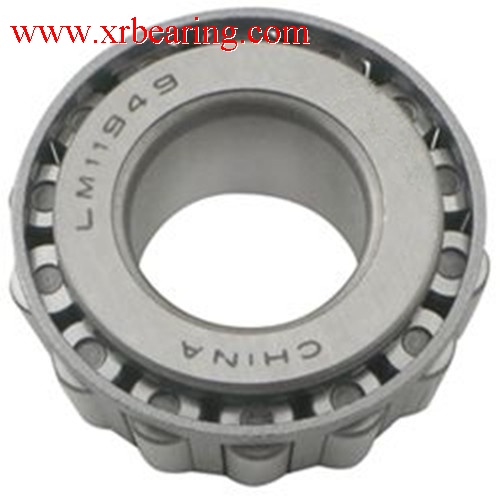

TIMKEN LM11949/LM11910 bearing

  • LM11949/LM11910 bearing

  • Bearing LM11949/LM11910 price

Bearing size:TIMKEN LM11949/LM11910 bearing
Type:inch tapered roller bearings
Dimension:19.05×45.237×15.494mm  inch size:0.75×1.7810×0.61 inch

  • Designation
  • LM11949/LM11910 bearing
  • Type
  • inch tapered roller bearing
  • Brand
  • d
  • 19.05mm
  • D
  • 45.237mm
  • T
  • 15.494mm
  • B
  • 16.637mm
  • C
  • 12.065
  • Cr
  • 10.7
  • C0r
  • 9.3
  • grease
  • 14000
  • oil
  • 19000

LM11949/LM11910 Bearing is made of High quality chrome steel,pressed steel cage,and super grinding rollers,each inner ring and outer ring of LM11949/LM11910 Bearing can be interchange,so XRB (
China bearing manufacturer) can produce very high quality LM11949/LM11910 Bearing for its customers,large stock and advance production for LM11949/LM11910 Bearing can meet your demand for fast delivery and high quality,Tapered roller bearings can be used in heavy truck,more tapered roller truck bearing can be supply.



Cone Part Number


Cup Part Number


Design Units


Bearing Weight

0.30 lb0.100 Kg

Cage Type

Stamped Steel

d - Bore

0.7500 in19.050 mm

D - Cup Outer Diameter

1.7810 in45.237 mm

B - Cone Width

0.6550 in16.637 mm

C - Cup Width

0.4750 in12.065 mm

T - Bearing Width

0.6100 in15.494 mm
R - Cone Backface "To Clear" Radius1 0.050 in1.270 mm
r - Cup Backface "To Clear" Radius2 0.050 in1.27 mm

da - Cone Frontface Backing Diameter

0.93 in23.62 mm

db - Cone Backface Backing Diameter

0.98 in24.89 mm

Da - Cup Frontface Backing Diameter

1.65 in41.90 mm

Db - Cup Backface Backing Diameter

1.56 in39.62 mm

Ab - Cage-Cone Frontface Clearance

0.05 in1.3 mm

Aa - Cage-Cone Backface Clearance

-0.01 in-0.3 mm
a - Effective Center Location3 -0.22 in-5.60 mm

XRB is China tapered roller bearings manufacturer & factory & supplier & exporter,it only adopt high quality chrome steel,each LM11949/LM11910 bearings  must be 100% testing before packing,LM11949/LM11910 Bearing are popular size that could be used in many applications,above mentioned can be used in many applications.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship LM11949/LM11910 bearing to your office at the first time.
