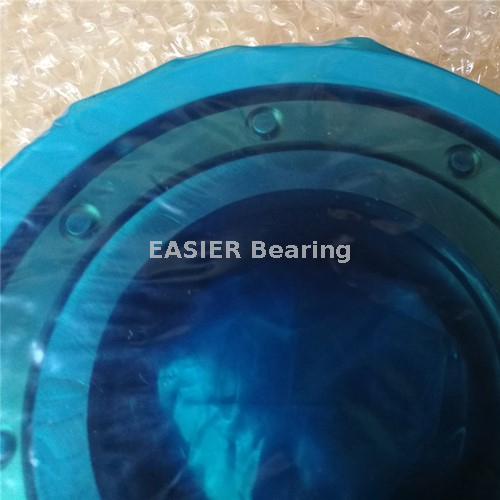

Electrically Insulated Bearing 6326 M/C3VL2071 is Deep Groove Ball Bearing design. its dimension is 130×280×58mm, it has the same dimension and the same design with normal chrome steel 6326M bearing. but the most different is 6326-M-J20AA bearing with Aluminium Oxide Coating. the coating can Electrical Resistance Voltages up to 3000 V DC. This kind of bearing are widely used in high quality demand application like traction motor.

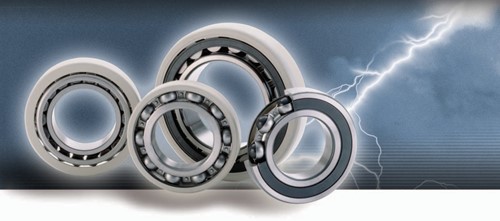

Principle bearing types for traction motor applications
• cylindrical roller bearings
• electrically insulated cylindrical roller bearings
• electrically insulated deep groove ball bearings
• hybrid cylindrical roller bearings with ceramic rollers
• hybrid deep groove ball bearings with ceramic balls
• traction motor bearing units based on cylindrical roller bearings and
deep groove ball bearings
• Sensorised traction motor bearing unit
• Regreasable traction motor bearing unit
Designation | Principal dimensions | Basic load ratings | Fatique load limit | Speed ratings | Weight | ||||
Deep groove ball bearing | mm | mm | mm | dynamic | static | Reference speed | Limiting speed | kg | |
d | D | B | C[kN] | C0[kN] | [r/min] | [r/min] | |||
6322/C3VL0241 | 110 | 240 | 50 | 216 | 180 | 5.7 | 6000 | 3800 | 9.7 |
6322 M/C3VL0241 | 110 | 240 | 50 | 216 | 180 | 5.7 | 6000 | 5300 | 11 |
6224/C3VL0241 | 120 | 215 | 40 | 153 | 118 | 3.9 | 6300 | 4000 | 5.3 |
6324/C3VL2071 | 120 | 260 | 55 | 216 | 186 | 5.7 | 5600 | 3400 | 12.7 |
6324 M/C3VL2071 | 120 | 260 | 55 | 216 | 186 | 5.7 | 5600 | 5000 | 15 |
6226/C3VL2071 | 130 | 230 | 40 | 163 | 132 | 4.15 | 5600 | 3600 | 5.8 |
6326/C3VL2071 | 130 | 280 | 58 | 242 | 216 | 6.3 | 5000 | 3200 | 15.5 |
6326 M/C3VL2071 | 130 | 280 | 58 | 242 | 216 | 6.3 | 5000 | 4500 | 16.5 |
6228/C3VL2071 | 140 | 250 | 42 | 174 | 150 | 4.55 | 5300 | 3400 | 7.5 |
6328/C3VL2071 | 140 | 300 | 62 | 265 | 245 | 7.1 | 4800 | 3000 | 18.7 |
6328 M/C3VL2071 | 140 | 300 | 62 | 265 | 245 | 7.1 | 4800 | 4300 | 21.8 |
6230/C3VL2071 | 150 | 270 | 45 | 186 | 166 | 4.9 | 5000 | 3200 | 10 |
6330/C3VL2071 | 150 | 320 | 65 | 286 | 285 | 7.8 | 4300 | 2800 | 23 |
6332 M/C3VL2071 | 160 | 340 | 68 | 291 | 285 | 7.65 | 4000 | 3800 | 31 |
6334 M/C3VL2071 | 170 | 360 | 72 | 332 | 340 | 8.8 | 3800 | 3400 | 35 |
6336 M/C3VL2071 | 180 | 380 | 75 | 371 | 405 | 10.4 | 3600 | 3200 | 41 |
Frequently used bearing types in VL2071 execution (insulation on the outer ring) are available on stock or with short lead times. Examples:

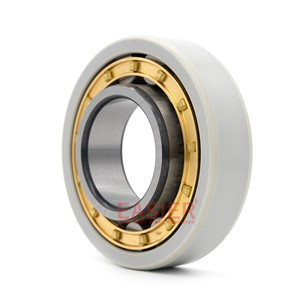

> Cylindrical roller bearings
Design: NJ, NU, NUP
Dimension series: 210-230, 310-330
Cage: brass and polyamide
Radial clearance groups: C0, C3, C4
> Deep groove ball bearings
Dimension series: 6212-6226; 6312-6326
Cage: brass
Radial clearance groups: C3, C4

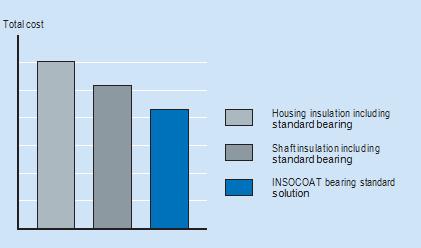

Features of insulated bearings
1. High insulation properties
To prevent electric corrosion in bearings, a highly productive aluminum ceramic coating material is used to coat the outer ring, and by combining optimized additives, insulation performance is improved by about tenfold.
2. Improved durability
· Optimizing bearing elements improves film impact resistance by a factor of 3x.
· Optimized ceramic coating materials makes for excellent heat dissipation.
