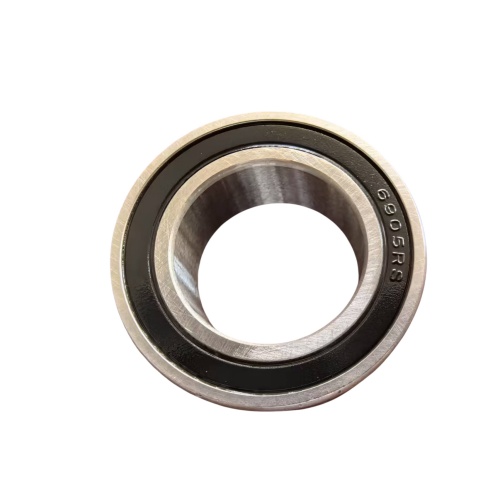

What are hybrid ceramic ball bearings?
Hybrid ceramic ball bearings are a type of bearing structure in which the rolling elements are made of ceramic material and the inner and outer rings are made of bearing steel (or other alloy steels, such as 440C stainless steel).
It is not a full ceramic bearing (the rings and rolling elements of a full ceramic bearing are both ceramic), but through the combination of "ceramic rolling elements + steel rings", it takes into account the characteristics of ceramic materials and the structural strength of steel.
The most commonly used ceramic rolling element material is silicon nitride (Si₃N₄), followed by zirconium oxide (ZrO₂), and alumina (Al₂O₃) is used in a few scenarios; the ring material is mostly high carbon chromium bearing steel (such as GCr15) or carburized bearing steel (such as G20CrNiMo), various stainless steel materials such as 440C and other high nitrogen stainless steel.
Characteristics of hybrid ceramic ball bearings
The core characteristics of hybrid ceramic ball bearings are determined by the ceramic rolling elements and bearing rings, as follows:
1. Lightweight
Ceramic materials have a much lower density than steel: silicon nitride has a density of approximately 3.2g/cm³, only 41% of bearing steel (7.8g/cm³); zirconium oxide has a density of approximately 6.0g/cm³, 77% of steel. Lightweighting rolling elements significantly reduces inertia and increases rotational speed.
2. High Hardness and Wear Resistance
Ceramics are much harder than steel: silicon nitride can reach HRC 78-80 (bearing steel is approximately HRC 60-65) and has a smoother surface (roughness typically less than 0.02μm, compared to approximately 0.04μm for steel). This makes the rolling elements more wear-resistant and less susceptible to abrasive wear.
3. High-Temperature Resistance and Thermal Deformation Resistance
Ceramics offer superior high-temperature resistance to steel. Bearing steel performance degrades above 150-200°C (hardness decreases, thermal expansion increases), while silicon nitride can operate stably above 300°C and even withstand temperatures of 600°C for short periods. Furthermore, ceramics have a thermal expansion coefficient of only 1/3-1/2 that of steel, resulting in greater dimensional stability at high temperatures.
4. Corrosion Resistance and Chemical Stability
Ceramics are inert materials and do not react with water, acids, bases, or organic solvents. Bearing steel, on the other hand, is susceptible to rust and corrosion. Therefore, hybrid ceramic bearings are more durable in environments with high humidity, dust, or chemical exposure.
5. Low friction and insulation
Ceramic surfaces have a low coefficient of friction (approximately 0.1-0.15, compared to steel's 0.15-0.2) and are self-lubricating (allowing short-term operation even when oil is scarce). Furthermore, ceramics are non-conductive, blocking shaft currents (preventing electrical corrosion caused by current flowing through the bearings).
6. Fatigue Resistance and Long Life
Ceramics have higher fatigue resistance than steel, and the contact stress distribution between the rolling elements and steel rings is more even. This makes them less susceptible to fatigue spalling under high speeds and heavy loads, resulting in a lifespan typically 2-5 times that of traditional steel ball bearings.
Advantages compared with steel ball bearings (all-steel bearings)
Compared with traditional bearings whose rolling elements and rings are made of steel, the core advantages of hybrid ceramic ball bearings are reflected in the following aspects
| Comparison of dimensions | Hybrid ceramic ball bearings | Steel ball bearings |
| Speed capability | Improved high-speed performance: Lightweight rolling elements reduce centrifugal forces (centrifugal force is proportional to mass), allowing them to withstand higher speeds (typically 30%-50% higher than steel bearings) while generating less heat at high speeds. | At high speeds, the centrifugal force is large, the ring stress is high, it is easy to overheat, and the speed is limited. |
| High temperature resistance | It can work stably above 300℃ and is suitable for high temperature environments. | Generally it does not exceed 150-200℃, as it is easy to soften and fail at high temperature. |
| Corrosion resistance | Ceramic rolling elements are rust-proof, chemical-resistant, and suitable for harsh environments. | Steel is prone to rust and has a short lifespan when exposed to corrosive media. |
| Lifespan and reliability | Wear-resistant and fatigue-resistant, it can still work for a short period of time when lacking oil, and has a longer service life. | Dependence on lubrication, high risk of abrasive wear and fatigue spalling. |
| Insulation | Ceramics are non-conductive and block shaft currents (protecting bearings from electrical corrosion). | Steel is conductive and is easily damaged by electrical corrosion due to shaft current. |
| Lightweight | The rolling element is light in weight, which reduces the overall inertia of the equipment and saves energy | The rolling weight has large inertia and high energy consumption. |
Application of hybrid ceramic ball bearings
The application scenarios of hybrid ceramic ball bearings are highly consistent with their advantages, mainly concentrated in areas with high speed, high temperature, corrosion resistance, insulation requirements or high life requirements:
1. High-speed machinery field
Machine tool spindles (such as machining centers and grinders): require high precision and high speed. Hybrid ceramic bearings can reduce vibration and heat generation, and improve machining accuracy.
Automobile turbocharger: The speed can reach over 100,000 rpm and the temperature is high. The ceramic rolling elements can withstand extreme working conditions.
Aerospace equipment (such as helicopter engines and drone motors): lightweight and high speed requirements.
2. High temperature environment field
Industrial furnace transmission mechanism, heat treatment equipment: long-term operation above 300℃, ceramic rolling elements have strong resistance to thermal deformation.
Gas turbines and diesel engines: High-temperature exhaust end bearings must withstand high temperatures and vibrations.
3. Corrosion-resistant scenes
Chemical equipment (such as centrifugal pumps, reactor stirring shafts): contact with corrosive media such as acids, alkalis, and organic solvents.
Seawater desalination equipment and marine engineering: resist high salt corrosion in seawater.
4. Electrical equipment requiring insulation
Wind turbines, traction motors (high-speed rail/subway): Prevent shaft current (induced current generated when the motor is running) from causing electrical corrosion through the bearings, extending service life.
High-voltage motors and transformers: bearing parts that require electrical insulation.
5. High Precision and long-life equipment
Medical equipment (such as CT machines and MRI equipment): low vibration, long life requirements, and the need to avoid metal contamination.
Semiconductor manufacturing equipment (such as wafer cutting machines): high cleanliness and low particle generation (ceramics are wear-resistant and not prone to producing wear debris).
In summary, hybrid ceramic ball bearings, through the combination of "ceramic rolling elements + steel rings", maximize the performance advantages of ceramic materials while retaining the structural strength of steel, becoming a key component to replace traditional steel bearings in high-end equipment.
