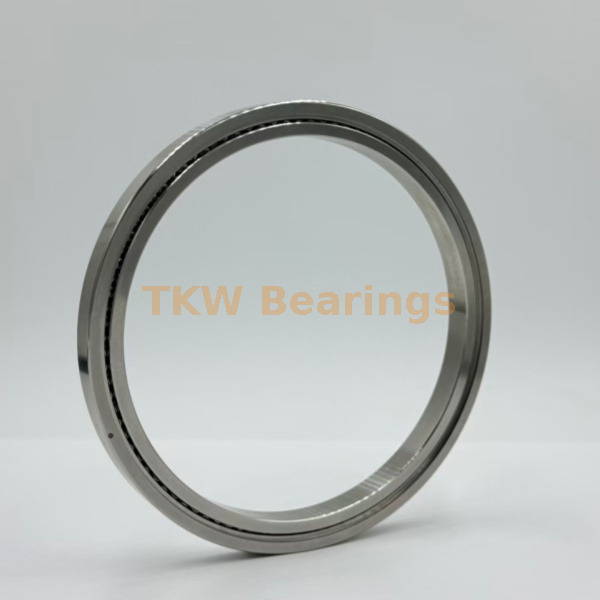

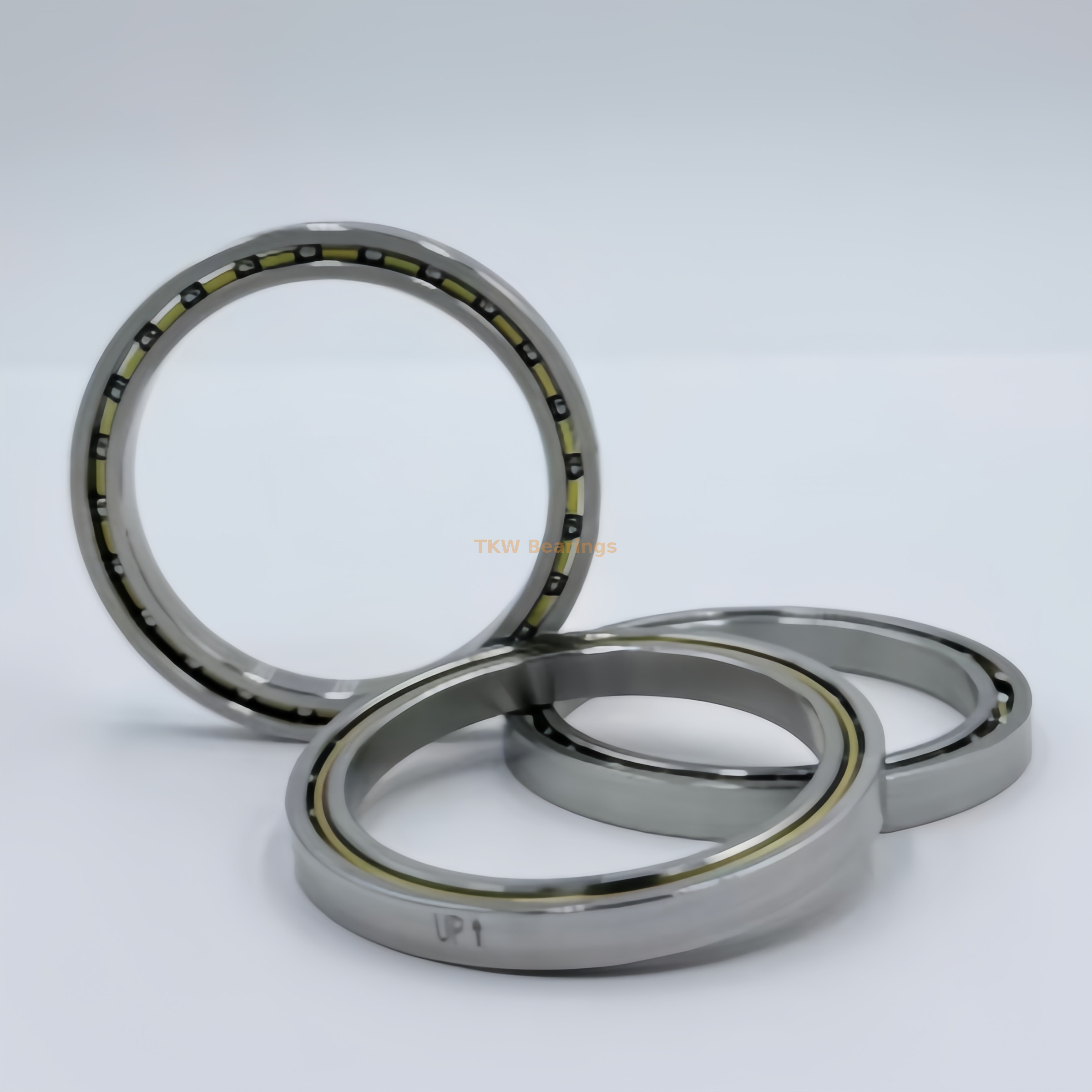

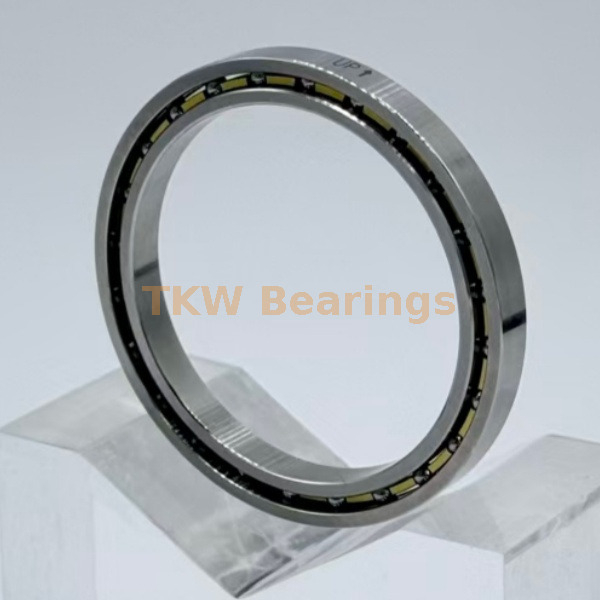

KC-XP0 is a four-point contact Reali-Slim thin section ball bearing, featuring a constant cross section of 9.525 mm. Made of 440C stainless steel, it can withstand radial, bidirectional axial and overturning moments simultaneously. It is highly precise and lightweight, and is compatible with robots, optical equipment and semiconductor turntables. It is available in a full range of large-diameter specifications to meet the precision rotation requirements in compact spaces.
Maximum radius of chamfer on shaft or bearing housing
KC042XP0 Thin Section Bearing
d
107.95 mm / 4.25 in
aperture
D
127 mm / 5 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 114.986 mm / 4.527 in
Inner ring flange diameter
D1
≈ 119.964 mm / 4.723 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC045XP0 Thin Section Bearing
d
114.3 mm / 4.5 in
aperture
D
133.35 mm / 5.25 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 121.336 mm / 4.777 in
Inner ring flange diameter
D1
≈ 126.314 mm / 4.973 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC047XP0 Thin Section Bearing
d
120.65 mm / 4.75 in
aperture
D
139.7 mm / 5.5 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 127.686 mm / 5.027 in
Inner ring flange diameter
D1
≈ 132.664 mm / 5.223 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC050XP0 Thin Section Bearing
d
127 mm / 5 in
aperture
D
146.05 mm / 5.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 134.036 mm / 5.277 in
Inner ring flange diameter
D1
≈ 139.014 mm / 5.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC055XP0 Thin Section Bearing
d
139.7 mm / 5.5 in
aperture
D
158.75 mm / 6.25 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 146.736 mm / 5.777 in
Inner ring flange diameter
D1
≈ 151.714 mm / 5.973 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC060XP0 Thin Section Bearing
d
152.4 mm / 6 in
aperture
D
171.45 mm / 6.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 159.436 mm / 6.277 in
Inner ring flange diameter
D1
≈ 164.414 mm / 6.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC065XP0
KC070XP0
KC075XP0
KC080XP0
KC090XP0
KC100XP0
KC110XP0
KC065XP0 Thin Section Bearing
d
165.1 mm / 6.5 in
aperture
D
184.15 mm / 7.25 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 172.136 mm / 6.777 in
Inner ring flange diameter
D1
≈ 177.114 mm / 6.973 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC070XP0 Thin Section Bearing
d
177.8 mm / 7 in
aperture
D
196.85 mm / 7.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 184.836 mm / 7.277 in
Inner ring flange diameter
D1
≈ 189.814 mm / 7.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC075XP0 Thin Section Bearing
d
190.5 mm / 7.5 in
aperture
D
209.55 mm / 8.25 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 197.536 mm / 7.777 in
Inner ring flange diameter
D1
≈ 202.614 mm / 7.973 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC080XP0 Thin Section Bearing
d
203.2 mm / 8 in
aperture
D
222.25 mm / 8.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 210.236 mm / 8.277 in
Inner ring flange diameter
D1
≈ 215.214 mm / 8.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC090XCP0 Thin Section Bearing
d
228.6 mm / 9 in
aperture
D
247.65 mm / 9.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm /0.375 in
width
d1
≈ 235.636 mm / 9.277 in
Inner ring flange diameter
D1
≈ 240.614 mm / 9.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC100XP0 Thin Section Bearing
d
254 mm / 10 in
aperture
D
273.05 mm / 10.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 261.036 mm / 10.277 in
Inner ring flange diameter
D1
≈ 266.014 mm / 10.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC100XP0 Thin Section Bearing
d
254 mm / 10 in
aperture
D
273.05 mm / 10.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 261.036 mm / 10.277 in
Inner ring flange diameter
D1
≈ 266.014 mm / 10.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC120XP0
KC140XP0
KC160XP0
KC180XP0
KC200XP0
KC250XP0
KC300XP0
KC120XP0 Thin Section Bearing
d
304.8 mm / 12 in
aperture
D
323.85 mm / 12.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 311.836 mm / 12.277 in
Inner ring flange diameter
D1
≈ 316.814 mm / 12.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC140XP0 Thin Section Bearing
d
355.6 mm / 14 in
aperture
D
374.65 mm / 14.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 362.636 mm / 14.277 in
Inner ring flange diameter
D1
≈ 367.614 mm / 14.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC160XP0 Thin Section Bearing
d
406.4 mm / 16 in
aperture
D
425.45 mm / 16.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 413.436 mm / 16.277 in
Inner ring flange diameter
D1
≈ 418.414 mm / 16.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC180XP0 Thin Section Bearing
d
457.2 mm / 18 in
aperture
D
476.25 mm / 18.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 464.236 mm / 18.277 in
Inner ring flange diameter
D1
≈ 469.214 mm / 18.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC200XP0 Thin Section Bearing
d
508 mm / 20 in
aperture
D
527.05 mm / 20.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 515.036 mm / 20.277 in
Inner ring flange diameter
D1
≈ 520.014 mm / 20.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC250XP0 Thin Section Bearing
d
635 mm / 25 in
aperture
D
654.05 mm / 25.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 642.036 mm / 25.277 in
Inner ring flange diameter
D1
≈ 647.014 mm / 25.473 in
Outer ring flange diameter
4.763 mm / 0.1875 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KC300XP0 Thin Section Bearing
d
762 mm / 30 in
aperture
D
781.05 mm / 30.75 in
outer diameter
B
9.525 mm / 0.375 in
radial cross section
H
9.525 mm / 0.375 in
width
d1
≈ 769.036 mm / 30.277 in
Inner ring flange diameter
D1
≈ 774.014 mm / 30.473 in
Outer ring flange diameter
3.969 mm / 0.1563 in
sphere diameter
1.016 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
Thin Section Bearings are extra thin section bearings, with square cross-sections for both inner and outer rings, and the cross-sectional dimensions are consistent.The whole is composed of an inner ring, an outer ring, rolling elements, and a retaining structure.Based on the raceway form, there are three types of structures: deep groove ball, angular contact, and four-point contact, most of which are open designs.Cages are used to separate and hold rolling elements in place.The angular contact structure has a fixed contact angle and can withstand radial and unidirectional axial loads; the four-point contact structure can withstand bidirectional axial loads.The bearings have uniform wall thickness, compact shape, small installation space, and are suitable for various precision automated equipment.
High-carbon chromium GCr15 steel is commonly used for thin section bearing bearings. This material has high contact strength after hardening and is suitable for corrosion-free precision equipment. Under the working conditions of water vapor and chemical media, the ferrules and steel balls are made of 440C stainless steel, which relies on high chromium content to resist corrosion and take into account the mechanical load-bearing performance.The cage that separates the steel balls is divided into two types: copper and polymer plastic. The copper cage has good lubrication adaptability and is not easy to get stuck during high-speed operation; the polymer plastic cage is lightweight and has lower friction resistance.The difference in thermal expansion of the materials in each part of the bearing is close to each other and is suitable for cross-section structures such as thin walls. The material combination can avoid fitting clearance deviations caused by temperature changes.
