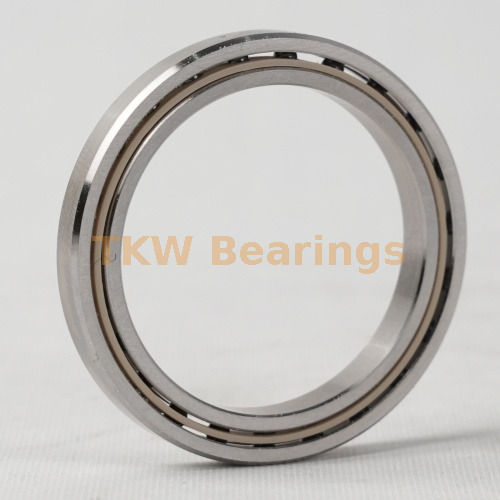

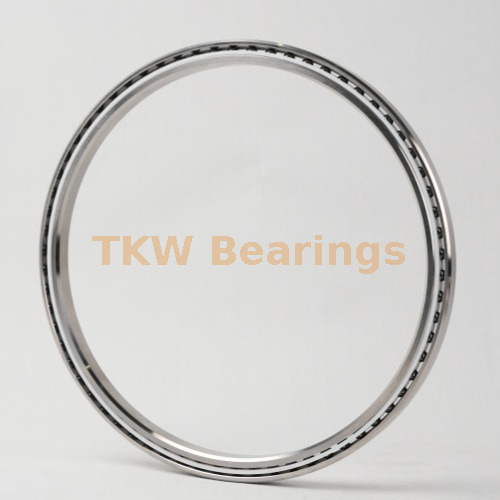

KB100AR0 Steel Raceway thin Section Bearing for Laser Scanning Inspection Platforms

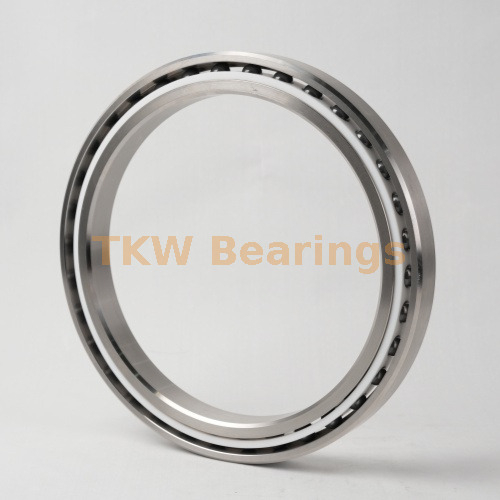

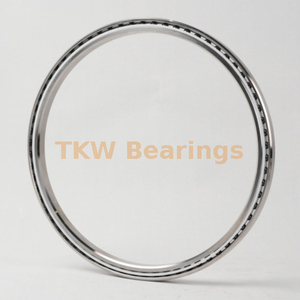

The KB100AR0 is an open-type constant-section bearing featuring GCr15 steel rings, a brass cage, and precision steel balls.Featuring a large-aperture, lightweight structure and a 30° contact angle for excellent load-bearing capacity, it offers low-friction operation and stable precision; it is widely used in semiconductor inspection, medical imaging equipment, and precision aerospace rotary devices.

The mainstream precision grades for thin Section Bearings are P4 and P5.The inner diameter, outer diameter, and width tolerances of P5 grade bearings are within the normal range, and the raceway form and position deviations, radial and axial run-outs meet general usage requirements.P4 grade is a high-precision specification with narrower dimensional tolerances, higher raceway geometric accuracy, and significantly reduced radial and axial run-out.The two grades of parameters are clearly defined, and all accuracy indicators are implemented in accordance with the specifications, ensuring a high degree of uniformity in the accuracy performance of bearings of the same grade.

Thin Section Bearings provide a uniform load distribution during dynamic operation, making them suitable for medium- and high-speed, medium- and small-scale alternating load conditions.P4 and P5 levels correspond to different rotational runout limits, and the vibration amplitude is controllable during high-speed operation.The rolling elements and raceways maintain stable contact, resulting in low frictional loss and a gradual temperature rise during continuous operation.The internal lubricating film can be maintained intact under dynamic pressure, effectively preventing dry friction.There are no obvious shocks or abnormal noises during start-up, shutdown, and speed change. The dynamic response is stable and it can maintain operating accuracy for a long time, making it suitable for various transmission mechanisms for continuous operation.

The overall structure of the constant-section bearing has a balanced force distribution. When it is subjected to radial and axial composite alternating loads for a long time, it only produces a small amount of elastic deformation, and no permanent structural deformation occurs. P4 and P2 high-precision bearings have extremely low factory shape and position errors, and the rotational runout increment is weak after long-term high-speed operation. Standard filling of grease can stably control the friction temperature rise and delay the fatigue aging of the rolling pair. Under high-intensity operating conditions, the performance indicators of the bearings decay gently, and the repeated positioning accuracy is not easy to fail. It is suitable for long-term continuous production and use of semiconductor, medical, and automation equipment.
