Model:
KF090AR0
Brand:
TKW
Item:
Thin Section Bearing

Product Description

KF090AR0

This diagram only shows the lengths d, D, B, and H in millimeters.

KF090AR0.PDF

The document contains charts in millimeters, as well as a brief introduction to our factory.

Download

Technical information.

Metric

Imperial

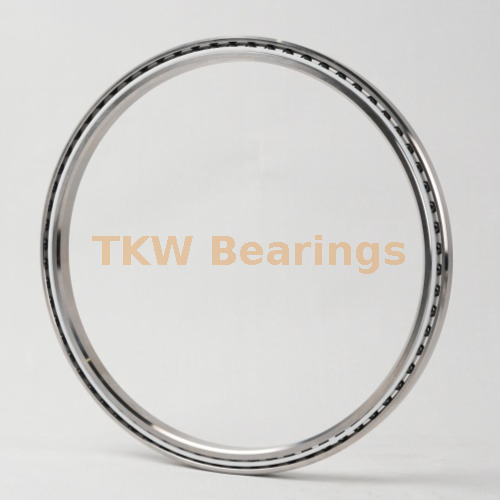

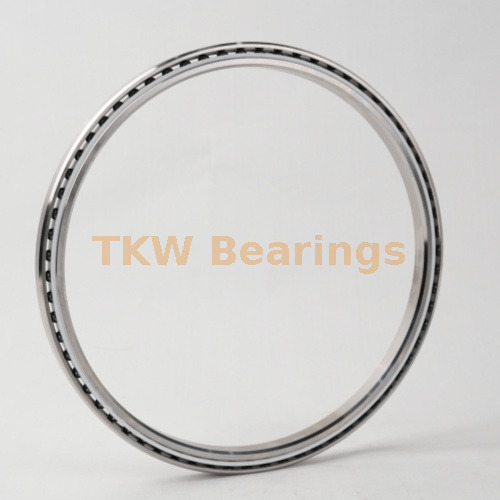

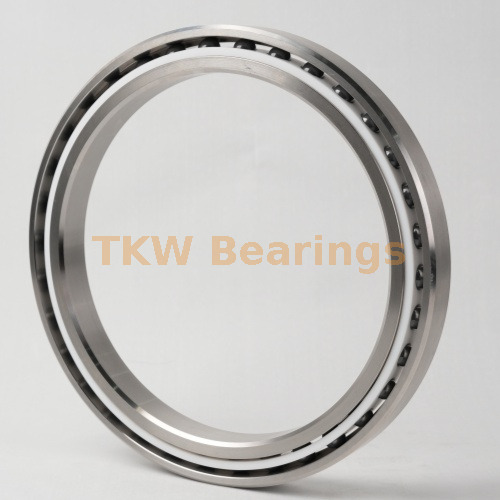

KF090AR0 Thin Section Bearing
d	9 in	aperture
D	10.5 in	outer diameter
B	0.75 in	Radial cross-section
H	0.75 in	width
d1	≈9.555 in	Inner ring rib diameter
D1	≈9.945 in	Outer ring flange diameter
D4	≈10.108 in	Outer ring flange diameter
	0.375 in	Ball diameter
	0.08 in	Maximum chamfer radius of shaft or bearing

KF090AR0 Thin Section Bearing
d	228.6 mm	aperture
D	266.7 mm	outer diameter
B	19.05 mm	Radial cross-section
H	19.05 mm	width
d1	≈242.697 mm	Inner ring rib diameter
D1	≈252.603 mm	Outer ring flange diameter
D4	≈256.743 mm	Outer ring flange diameter
	9.525 mm	Ball diameter
	2.032 mm	Maximum chamfer radius of shaft or bearing

If you have any questions, please feel free to email us!

The TKW Bearing part series KF090AR0 is a potential replacement for these common bearing part numbers.

KAYDON	RBC	INA	SSB	SILVER	NSK
KF090AR0	KF090AR0*RBC	CSEF090	RF090AR0	SF090AR0	-

TKW is a manufacturer specializing in high-precision bearings. Its product portfolio includes high-precision hybrid ceramic ball bearings, ultra-thin-section bearings, servo motor bearings, high-precision stainless steel bearings, vacuum pump bearings, magnetic levitation bearings, thin-section crossed roller bearings, reactor bearings, full ceramic bearings, bearings for the food and beverage industry, new energy vehicle bearings, excavator bearings, construction machinery bearings, and custom-engineered bearings. The products meet P5, P4, and P2 precision standards, and customized services are available to meet specific customer requirements.
