SYJ3/4TF Insert Bearing Unit

SYJ 3/4 TF Pillow block ball bearing units
SYJ 504 housing + YAR 204-012-2F bearing
Weight: 0.57kg

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ3/4TF
  • EASIER
  • SYJ 504
  • SYJ3/4TF
  • USD$3-7

SYJ 3/4 TF Pillow block ball bearing units

SYJ 504 housing + YAR 204-012-2F bearing

Weight: 0.57kg

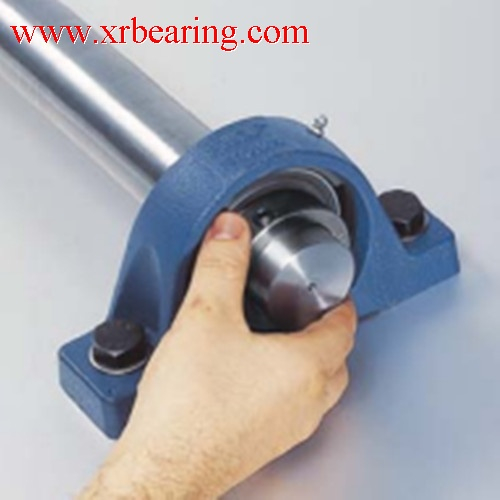

SYJ3/4TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ3/4TF plummer block unit consist of SYJ504 Housing and YAR204-012-2F Bearing, SYJ3/4TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ3/4TF bearings is widely used in many industrial application, the inner diameter is 19.05mm, the outer ring is 65mm, the height is 31mm, the weight of SY3/4TF bearings is 1.23kgSJY3/4TF bearings with a standard inner ring are designed in according with a moduar concept, each SYJ3/4TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

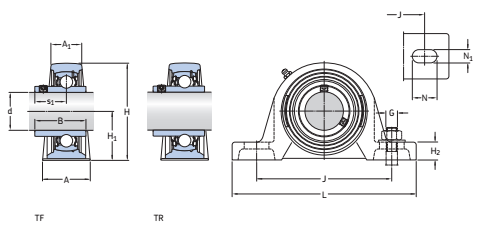

Dimensions - SYJ 3/4 TF Dimensions - SYJ 3/4 TF Dimensions - SYJ 3/4 TF

DIMENSIONS

d
19.05 mm
d1
≈ 28.2 mm
A
34 mm
A1
23 mm
B
31 mm
B4
4.5 mm
H
33.3 mm
H1
14 mm
H2
64.5 mm
J
97 mm
J
max. 105 mm
J
min. 89 mm
L
127 mm
N
13 mm
N1
21 mm
s1
18.3 mm


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SYJ3/4TF bearings, Our large quantity SYJ3/4TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order,also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ3/4TF bearings to your office at the first time. More technical details, please contact with :
