What is a thin section bearing?

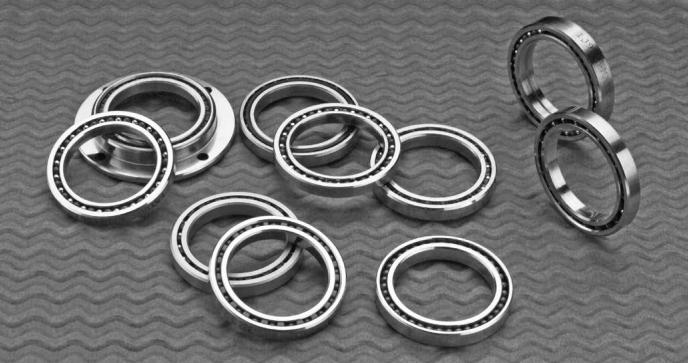

    A thin section bearing is a type of bearing designed to accommodate a large inner diameter while minimizing cross-sectional thickness and maintaining a square cross-sectional profile. Standard bearings typically feature a cross-section that increases with the shaft diameter, whereas thin section bearings maintain a uniform cross-section across a wide range of inner diameters. Characterized by thin walls and light weight, they allow for the use of larger-diameter hollow shafts; such bearings are generally suitable for applications with strict constraints on size and weight.

    Thin section bearings are commonly categorized into three design types: the radial contact type (Type C)—also known as the deep-groove ball type—which is primarily designed for radial loads but can also withstand thrust loads in both directions; Angular contact type (Type A), optimized for radial and axial loads; The four-point contact type (X-type) allows a single bearing to support radial, axial, and moment loads, often serving as a replacement for two standard bearings.

    Manufacturers of thin section bearings offer a range of cross-section series; taking the industry-standard specifications—such as those from the U.S.-based Kaydon—as an example, these bearings are primarily categorized into three distinct cross-section series. The C-series and A-series feature a cross-section size of 0.1875 x 0.1875 inches, with an inner diameter range of 1.000 to 40.000 inches. The X-series features a cross-section size of 0.25 × 0.25 inches and an inner diameter range of 2.000 to 40.000 inches. The H-series features a cross-section size of 0.3125 x 0.3125 inches and an inner diameter range of 2.500 to 40.000 inches. TKW Bearing Company from China manufactures a full range of thin-section, constant-cross-section bearings and offers custom production to meet customer requirements.

    Based on the characteristics of thin section bearings, they are primarily used in applications such as robot joints and rotating arms, medical equipment, satellite gimbals, and semiconductor manufacturing. High-quality thin section bearings should possess five core qualities: high rotational accuracy, lightweight and compact design, high load-bearing capacity and rigidity, superior frictional performance, and high material reliability. These qualities can enhance key factors influencing the system, such as bearing performance and service life.

    Naturally, the choice of bearing material depends on the operating environment; GCr15 bearing steel is typically used for standard applications, as it offers high hardness, superior wear resistance, and excellent contact fatigue strength, making it the most widely used material. 440C stainless steel is suitable for use in humid, acidic, alkaline, or corrosive environments, offering excellent rust and corrosion resistance. Furthermore, ceramic materials are lightweight, possess extremely high rigidity, and are electrically insulating and heat-resistant; consequently, they are frequently used in aerospace applications and high-end precision instruments that require high rotational speeds, non-magnetic properties, or absolute oil-free lubrication. This is merely an overview of the materials used for the rings and rolling elements; cages are made from different materials, with the choice primarily determined by the bearing's operating environment.
