In high-speed precision machinery, bearing performance relies on the matching of ring material and rolling element material, rather than corrosion resistance alone. Material pairing affects contact stress, friction loss, rotational temperature rise, electrical insulation, seizure resistance, fatigue life and total operation cost.

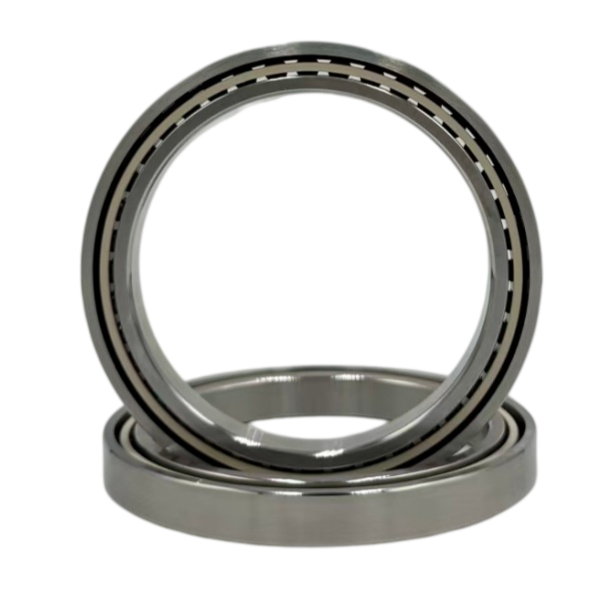

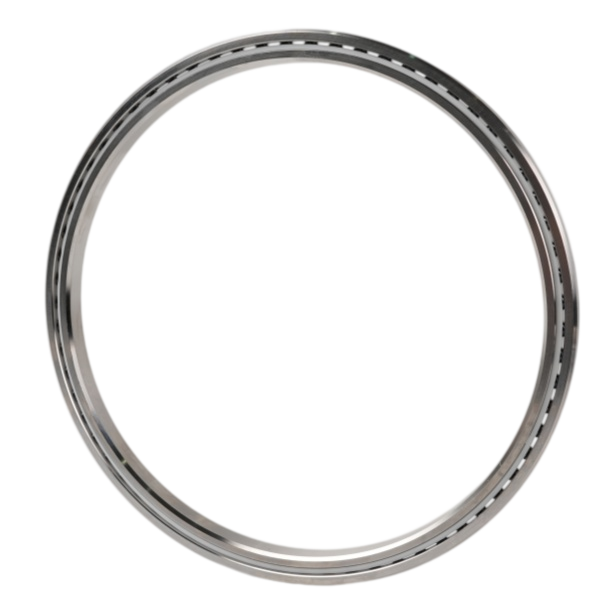

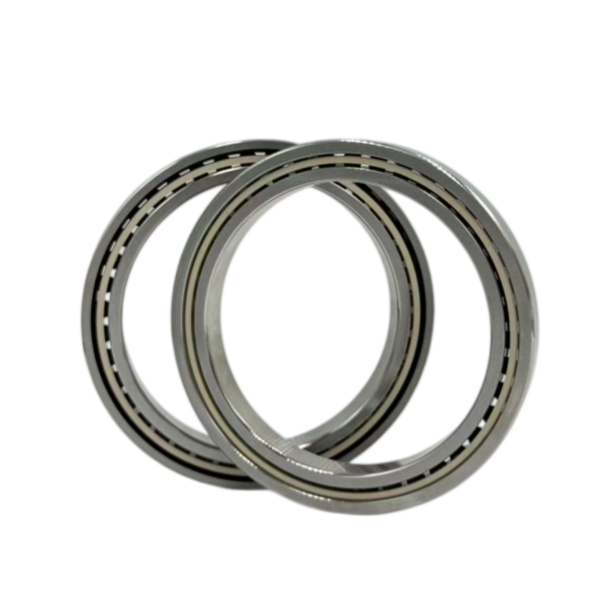

440C hybrid ceramic bearings consist of 440C stainless steel inner & outer rings paired with Si3N4silicon nitride balls. This configuration achieves an outstanding balance of moderate corrosion resistance, high speed capability, low friction and electrical insulation. The 440C rings reach HRC 58–62 after heat treatment, while silicon nitride balls feature low density, high hardness and self-lubricating properties. This design is widely selected for mildly corrosive high-speed operating conditions.
Even well-designed 440C hybrid ceramic bearings can experience premature failure if application conditions are mismatched or material-matching and lubrication rules are overlooked.
Why 440C Hybrid Ceramic Bearings Are Widely Used
Compared with full-steel 440C bearings, silicon nitride ceramic balls have lower density, higher hardness, lower thermal expansion and insulating properties. Centrifugal force reduces greatly at high speeds, effectively lowering temperature rise and rolling friction.
Unlike all-ceramic bearings, 440C steel rings offer better ductility and easier mounting. Compared with 304/316 stainless bearings, the hybrid structure delivers much higher load capacity and fatigue resistance. For automated equipment, pump spindles and high-speed devices exposed to moisture and weak chemicals, 440C hybrid ceramic bearings are the preferred upgrade solution.
Silicon nitride hybrid ceramic ball bearings are commonly used in the drive motors and on-board generators of new energy vehicles. During high-speed operation of a motor, the frequency converter will generate shaft voltage and shaft current. If steel rolling elements are used, they will generate electric sparks, causing electrical pitting. This will cause abnormal noise and increased vibration in the bearing within a short period of time, leading to premature bearing failure. Silicon nitride ceramic balls have excellent electrical insulation properties, which can cut off the shaft current circuit and avoid electrolytic corrosion damage. At the same time, silicon nitride material has good thermal stability, high temperature resistance, and lower density, which effectively reduces temperature rise and significantly improves the reliability of bearings throughout the entire vehicle life cycle.
Common Reasons for Early Failure
Hybrid bearing failure rarely comes from a single cause. It originates from the matching state between steel raceway and ceramic balls, surface quality, lubrication formulation, contamination, preload and operating environment.
1.Lubricant unsuitable for steel ceramic contact causes surface damage
Steel and silicon nitride form a heterogeneous contact pair. Standard greases formulated for steel contact may fail to build stable protective films. Insufficient or incompatible lubrication leads to abrasive wear on 440C raceways, surface pitting and noise increase. Specialised lubricants for hybrid ceramic bearings are critical to extend service life.
2.Corrosion on 440C raceways becomes fatigue initiation points
Only the balls are ceramic; inner and outer rings remain 440C stainless steel. The rings are still susceptible to corrosion under long-term chloride exposure, excessive moisture or corrosive fluids. Corrosion pits on raceways easily evolve into fatigue crack sources.
3. Excessive shock load leads to ceramic ball chipping
Silicon nitride ceramic balls are hard yet brittle. Heavy impact, shock load or improper hammering during installation may cause edge chipping or micro-cracks on ceramic balls. Damaged rolling elements trigger continuous scratching of the 440C raceway.
4.Over-preload or high speed aggravates contact stress
Although hybrid bearings support higher rotational speeds, excessive preload will sharply boost contact pressure and temperature. Sustained high stress accelerates raceway fatigue and deteriorates lubricant rapidly.
5.Hard foreign particles induce two-body abrasion
Hard contaminants trapped between ceramic balls and steel raceways produce severe abrasive wear. Ceramic balls can grind hard debris, continuously scraping the 440C raceway surface and causing permanent damage.
How to Reduce Failure Risk
Avoiding premature failure starts with verifying whether the hybrid structure matches real world working conditions. Designers should comprehensively evaluate:
· Rotational speed, acceleration and shock load level
· Load magnitude and load fluctuation
· Electrical stray current risk (insulation requirement)
· Humidity, salt spray and chemical exposure
· Lubricant compatibility with steel ceramic contact
· Preload setting and sealing scheme
· Expected service life
440C hybrid ceramic bearings are the optimal upgrade choice when high speed, insulation, low friction and moderate corrosion resistance are required. They are not necessary for low-speed, light-duty static applications.
Precision grade and ceramic ball quality matter significantly. High-purity silicon nitride balls with tight dimensional tolerance and excellent surface finish stabilise contact stress and reduce vibration.
Scientific maintenance is essential. Select lubricants specially developed for hybrid ceramic bearings, implement effective sealing, and regularly monitor temperature, vibration and noise to detect abnormal wear at an early stage.
Manufacturing Quality Creates Distinct Performance Differences
Simply combining 440C rings and ceramic balls cannot guarantee performance. Key processes include 440C heat treatment, raceway superfinishing, ceramic ball screening and cleanliness control during assembly. Uniform ring hardness, flawless raceway surfaces, and consistent ceramic ball roundness are essential. Buyers should assess complete matching quality instead of only checking separate component materials.
When Alternative Bearing Configurations Are More Suitable
Though 440C hybrid ceramic bearings are a premium upgrade option, other schemes may be preferable:
· Full 440C all-steel bearings: cost-effective for medium/low speed working conditions without insulation demands
· All-silicon nitride full ceramic bearings: for extreme corrosion environments
· 316 stainless steel bearings: for heavy chloride corrosive conditions with low speed
· Correct selection balances speed demand, insulation requirements, corrosion risk and equipment budget.
Conclusion
440C hybrid ceramic bearings are an advanced high-speed bearing solution for mildly corrosive equipment. They integrate moderate corrosion resistance from 440C rings plus low friction, light weight and insulation advantages of silicon nitride ceramic balls.
Premature failure still occurs if lubricant compatibility, shock load control, sealing and raceway protection are poorly managed.
Long service life and stable high-speed operation of hybrid ceramic bearing assemblies rely on reasonable structural selection, matching lubricant, shock avoidance, standardised assembly and stable manufacturing quality.
Within your equipment, which factor dominates hybrid bearing failure risks: incompatible lubrication, ceramic ball impact damage, or raceway corrosion?
