China quality Chrome steel CSB205,CSB205-16 insert bearing & pillow block Bearing & Lozysko
| Bearing specification | CSB205,CSB205-16 Lozysko |
| inner ring | 25mm,1in |
| outer ring | 52 mm |
| width | 27mm |
| weight | 0.16kg |
| Set Screw Size | 1/4-28UNF |
| Locking style | set screw locking |
| Type | Pillow block bearing & insert bearing |
| Merial | High quality chrome steel,GCR-15 |
| Grade | ABEC-1,P0 grade level |
| Brand | XRB |
| Grease Fitting | A-1/4-28UNF |
High quality chrome steel CSB205,CSB205-16 Pillow Block Bearing with eccentric (cam) locking collar
China quality CSB205.CSB205-16 insert bearing Lozysko has two set screws for shaft and also have a wide inner race and spherical outer race, used in agricultural.conveyor,construction,food and beverage processing,packaging,textile,
High Quality Pillow Block Bearing CSB205,CSB205-16 used in printing machine working with Cast Iron Housing(Pillow type), ball ,cage,wide inner ring,Hexagon soket set scrow,outer ring with spherical outside serface ,Seal,Grease hole,slinger ect. you can see that this bearing have a wide inner ring with set screws for attaching to the shaft,housing is cast iron with a grease zerk for re-lubrication the bearing.
| Economical housed bearing solution |
| Light and heavy industrial use |
| Agricultural and Automotive |
| Conveyor and Fan assemblies |
| Fabricated machine assembly |
| Great value quality parts dispatched the same day |
The CSB205.CSB205-16 pillow block bearing features a positive-contact, three-pieces, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
The application of CSB205.CSB205-16 pillow block bearing for printing machine include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
| Bearing No. | | Basic
load
ratings
N | Basic static load
ratings
N | Weight
(kg) | | d | D | B | C | S | S1 | ds | G | | CSB201 | 12 | 40 | 22 | 12 | 6 | 16 | M5×0.8 | 4.5 | 7360 | 4480 | 0.10 | | CSB201-8 | 3/4 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.630 | 10#-32 | 0.177 | 0.10 | | CSB202 | 15 | 40 | 22 | 12 | 6 | 16 | M5×0.8 | 4.5 | 7360 | 4480 | 0.10 | | CSB202-9 | 9/16 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.630 | 10#-32 | 0.177 | 0.10 | | CSB202-10 | 5/8 | 0.10 | | CSB203 | 17 | 40 | 22 | 12 | 6 | 16 | M5×0.8 | 4.5 | 7360 | 4480 | 0.09 | | CSB203-11 | 11/16 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.630 | 10#-32 | 0.177 | 0.09 | | CSB204 | 20 | 47 | 25 | 14 | 7 | 18 | M6×1 | 4.5 | 9880 | 6200 | 0.13 | | CSB204-12 | 3/4 | 1.8504 | 0.9843 | 0.5512 | 0.276 | 0.709 | 1/4-28UNF | 0.177 | 0.14 | | CSB205 | 25 | 52 | 27 | 15 | 7.5 | 19.5 | M6×1 | | 10780 | 6980 | 0.16 | | CSB205-13 | 13/16 | 2.0472 | 1.0630 | 0.5906 | 0.295 | 0.768 | 1/4-28UNF | 0.217 | 0.19 | | CSB205-14 | 7/8 | 0.18 | | CSB205-15 | 15/16 | 0.17 | | CSB205-16 | 1 | 0.16 | | CSB206 | 30 | 62 | 30 | 16 | 8 | 22 | M6×1 | 6 | 14970 | 10040 | 0.25 | | CSB206-17 | 1-1/16 | 2.4409 | 1.1811 | 0.6299 | 0.315 | 0.866 | 1/4-28UNF | 0.236 | 0.28 | | CSB206-18 | 1-1/8 | 0.26 | | CSB206-19 | 1-3/16 | 0.25 | | CSB206-20 | 1-1/4 | 0.24 | | CSB207 | 35 | 72 | 32 | 17 | 8.5 | 23.5 | M8×1 | 6.5 | 19750 | 13670 | 0.38 | | CSB207-20 | 1-1/4 | 2.8346 | 1.2598 | 0.6693 | 0.3353 | 0.925 | 5/16-24UNF | 0.256 | 0.43 | | CSB207-21 | 1-5/16 | 0.41 | | CSB207-22 | 1-3/8 | 0.38 | | CSB207-23 | 1-7/16 | 0.37 | | CSB208 | 40 | 80 | 34 | 18 | 9 | 25 | M8×1 | 7 | 22710 | 15940 | 0.60 | | CSB208-24 | 1-1/2 | 3.1496 | 1.3386 | 0.7087 | 0.354 | 0.984 | 5/16-24UNF | 0.276 | 0.58 | | CSB208-25 | 1-9/16 | 0.60 | | CSB209 | 45 | 85 | 41.2 | 19 | 10.2 | 31 | M8×1 | 8.2 | 24360 | 17710 | 0.8 | | CSB209-26 | 1-5/8 | 3.3465 | 1.6220 | 0.7480 | 0.402 | 1.220 | 5/16-24UNF | 0.323 | | CSB209-27 | 1-11/16 | | CSB209-28 | 1-3/4 | | CSB210 | 50 | 90 | 43.5 | 20 | 10.9 | 32.6 | M10×1 | 9.2 | 26980 | 19840 | 0.8 | | CSB210-29 | 1-13/16 | 3.5433 | 1.7126 | 0.7874 | 0.429 | 1.283 | 3/8-24UNF | 0.362 | | CSB210-30 | 1-7/8 | | CSB210-31 | 1-15/16 | | CSB210-32 | 2 | | CSB211 | 55 | 100 | 45.3 | 21 | 11.8 | 33.5 | M10×1 | 9.8 | 33370 | 25110 | 1.1 | | CSB211-32 | 2 | 3.9370 | 1.7835 | 0.8268 | 0.465 | 1.319 | 3/8-24UNF | 0.386 | | CSB211-33 | 2-1/16 | | CSB211-34 | 2-1/8 | | CSB211-35 | 2-3/16 | | CSB212 | 60 | 110 | 53.7 | 22 | 14.9 | 38.8 | M10×1 | 9.8 | 36740 | 27970 | 1.3 | | CSB212-36 | 2-1/4 | 4.3307 | 2.1142 | 0.8661 | 0.587 | 1.528 | 3/8-24UNF | 0.386 | | CSB212-37 | 2-5/16 | | CSB212-38 | 2-3/8 | | CSB212-39 | 2-7/16 | | |
Delivery: according to your quantity, normal delivery time:1-7days after confirmed.
Meterial: High quality chrome steel
Grade: ABEC-1
Packing: single box or industrial packing
Samples are avaiable for your testing.

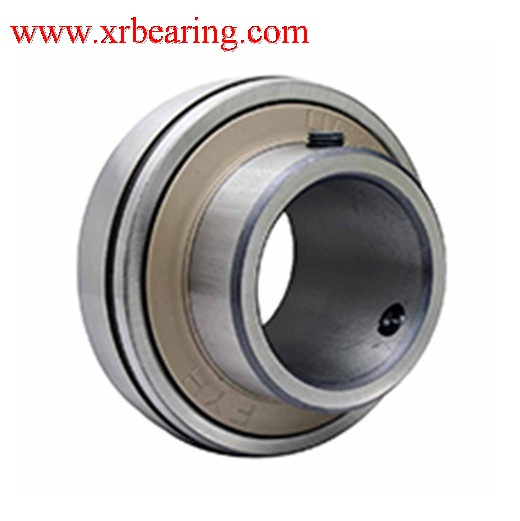

High quality CSB205,CSB205-16 insert bearing. This bearing has two set screws for attaching to the shaft. It has a narrow inner race and a 40mm Cylindrical outer race. Pre-lube.
| Interchange |
| PEER | FHSR205-16 |
| AMI | BR205-16 |
| BROWNING | SLS-116 |
| DODGE | INS-CC-100 |
| FAFNIR | YA100RR |
| IPTCI | CSB205-16N |
| NTN | ASS205-100N |
| SEAL MASTER | SL-16 |
XRB bearing is the China Bearing manufacturer & exporter & factory & supplier, Pillow Block Bearing also name insert bearing with housing,it can produce pillow block bearing unit with cast iron housing,pressed steel housing, stainless steel housing. and many kinds of Pillow Block Bearing unit like UCP200 Series,UCPX00 Series,HCAK200 Series, UEP200 Series,SBSP200 Series,SSUCP200 Series,SSUCP200-TP Series,TYPE-E Series, M2000 Series,BLP200 Series, ALP200 Series,UCPH200 Series, UCPA200 Series. we are sure we can supply the good price ,fast delivery and perfect service for all of the bearing distributor and end user.
Pillow Block Bearing UCPP203,UCPP204,UCPP205,UCPP206,UCPP207 can be found here also.
high temperature pillow block bearings UCECH210, UC204 C4HR5, UC205 C4HR5, UC206 C4HR5
UC207 C4HR5 , UC208 C4HR6, UC209 C4HR6,UC210 C3HR6
more questions,please contact our sales team.
