Designation: T1320 Bearings
Type: Thrust Roller Taper Bearings
Dimension: 33.754*59.400*15.875mm
Application: King Pin Thrust Bearings
Weight: 0.2kg
Stock: 200pcs
Materials: Chrome Steel
Feature: Full Rollers
Brand: EASIER
Origin: China
Suffix of RBC Tapered Thrust Bearings
T- Tapered Thrust Bearings
S- Sealed
W- Oil Holes in Retainer
C - Cylidrical Roller
GX - Greased

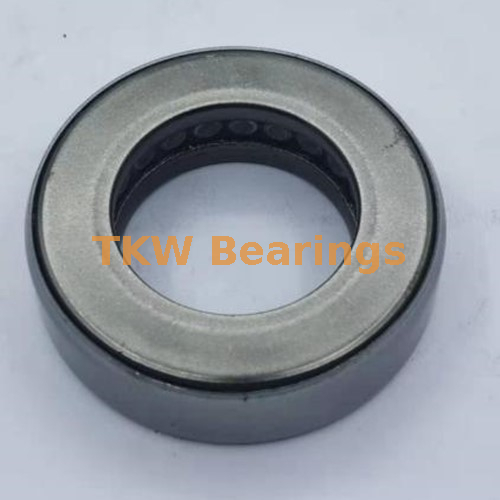

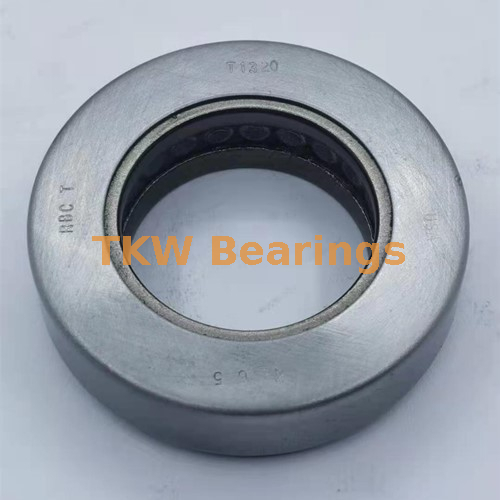

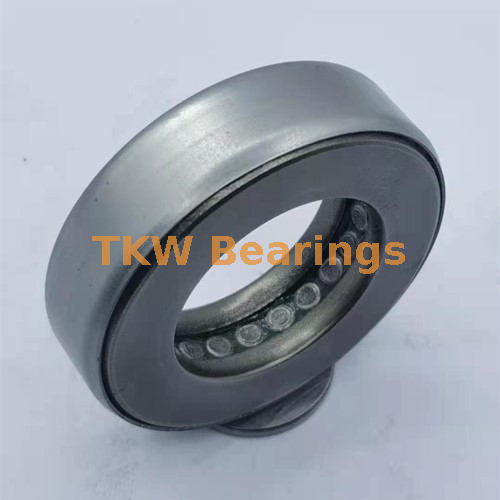

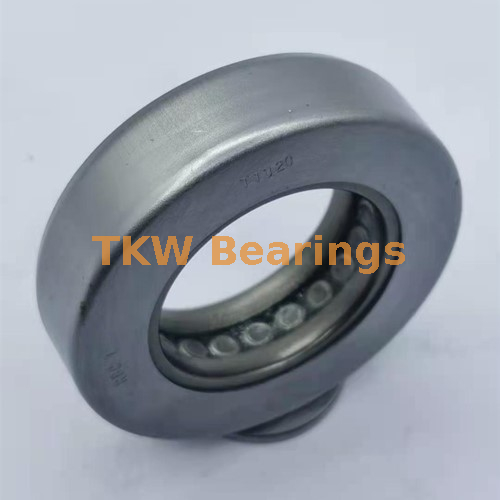

Thrust Tapered Roller Bearings T1320 for King Pin
· Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.
· Full complement design (cageless).
· These thrust bearings are specifically designed for oscillating applications.
· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.
King Pin Bearing with Tapered Roller King Pin Bearing with Ball King Pin Bearing with Metal Shell
King Pin Bearings T1320 also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.
The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.
Applications of King Pin Bearings T1320
-- Heavy Vehicles & other automobiles, -- Marine engines,Agricultural equipment's,
-- Steering,
-- Light Vehicles,
-- Industrial movers,
-- Fork lift trucks,
-- Conveyors,
-- Construction machinery,
| Bore Range | Common Applications |
1.750" - 16.000" 44.45 - 406.40mm | Oilfield Top Drives and Swivels, Extruders, Pulp and Paper Mill Equipment, Boring Mill Tables |
5.000" - 17.000" 127.00 - 431.80 mm | Oilfield Top Drives and Swivels, Extruders, Coal and Rock Crushers, Steel Mills |
0.885" - 3.010"
22.48 - 76.45 mm | Heavy Truck and Trailer Applications, Class 8 Trailer
Landing Gear, Construction Equipment, Kingpin
Assemblies, Steer Axles, Tractors |
0.885" - 3.010"
22.48 - 76.45 mm | Heavy Truck and Trailer Applications, Class 8 Trailer Landing Gear, Construction Equipment, Kingpin
Assemblies, Steer Axles, Tractors |
Top Bore
0.250" - 1.500"
6.35 - 38.10 mm | Bottom Bore
0.275" - 1.525"
6.99 - 38.74 mm | Small Crane Hooks, Handheld Pneumatic Tools,Scissor Jacks, Truck Landing Wheel Cranks,
Handheld Power Tools |
3.500" - 20.000"
88.90 - 508.00 mm | Crane Hooks, Gear Boxes, Pumps, Rolling Mills,Cone Crushers, Winch Systems, Heavy Duty Swivels |
Features of Thrust Tapered Roller Bearings
-- Excellent prevention from overrunning & backstopping
-- Self-Aligned ,
-- High load sustaining capacity
-- Seal excludes contamination with a separator and bore liner,
-- Prevent rotational damage,
-- Get automatically locked when rolled in opposite direction
EASIER is one of China Bearing manufacturers and exporter of King Pin Bearings with steel ball or steel rollers, also written as king-pin or king pin, is a very important component in any vehicle. It is the main pivot in the mechanism of steering in any vehicle. King Pins are also used as fifth wheel coupling apparatus in vehicles. King Pins have an important property of being able to carry heavier weights and therefore can be mostly seen in Large or Heavy Vehicles.
EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings T1320 & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW from China etc. Our products are the same design and replace them for customers on the market.
