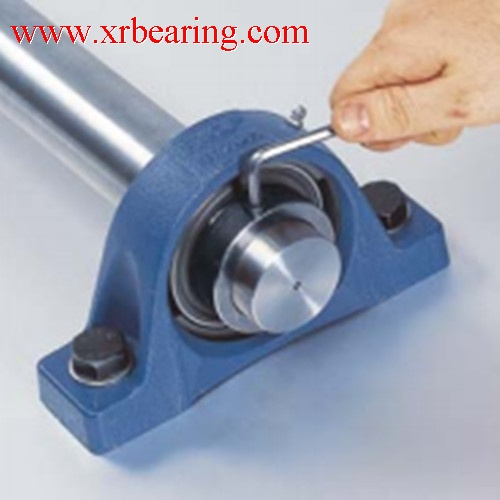

High Quality SY40TR Insert Bearing Unit

SY40 TR bearing Plummer block housing unit, SY40 TR bearings

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SY40TR
  • EASIER
  • SY 508 M housing
  • YAR 208-2RF bearing
  • Bearing SY40TR price
Keywords:SY40 TR bearing Plummer block housing unit, SY40 TR bearings



SY40TR bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SY40TR plummer block unit consist of SYJ508 Housing and YAR208-2F Bearing, SY40TR bearing plummer block unit can accommodate moderate initial misalignment,SY40TR bearings is widely used in many industrial application, the inner diameter is 40mm,the outer ring is 99mm,the height is 49.2mm, the weight of SY40TR bearings is 1.8kg,SY40TR bearings with a standard inner ring are designed in according with a moduar concept.


Each SY40TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Dimensions - SY 40 TR Dimensions - SY 40 TR Dimensions - SY 40 TR

DIMENSIONS

d
40 mm
d1
≈ 51.8 mm
A
48 mm
A1
30 mm
A5
26 mm
B
49.2 mm
B4
8 mm
H
49.2 mm
H1
19 mm
H2
99 mm
J
135.5 mm
J
max. 146 mm
J
min. 125 mm
L
175 mm
N
14 mm
N1
24.5 mm
s1
30.2 mm


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SY40TR bearings, Our large quantity SY40TR bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY40TR bearings to your office at the first time. More technical details,please contact with:
