New Product Launch! TKW's 7204 Hybrid Ceramic Stainless Steel Angular Contact Ball Bearing: P4 Precision, Corrosion Resistant And Anti-electrolytic Corrosion.
Views: 1 Author: Site Editor Publish Time: 2026-10-23 Origin: Site

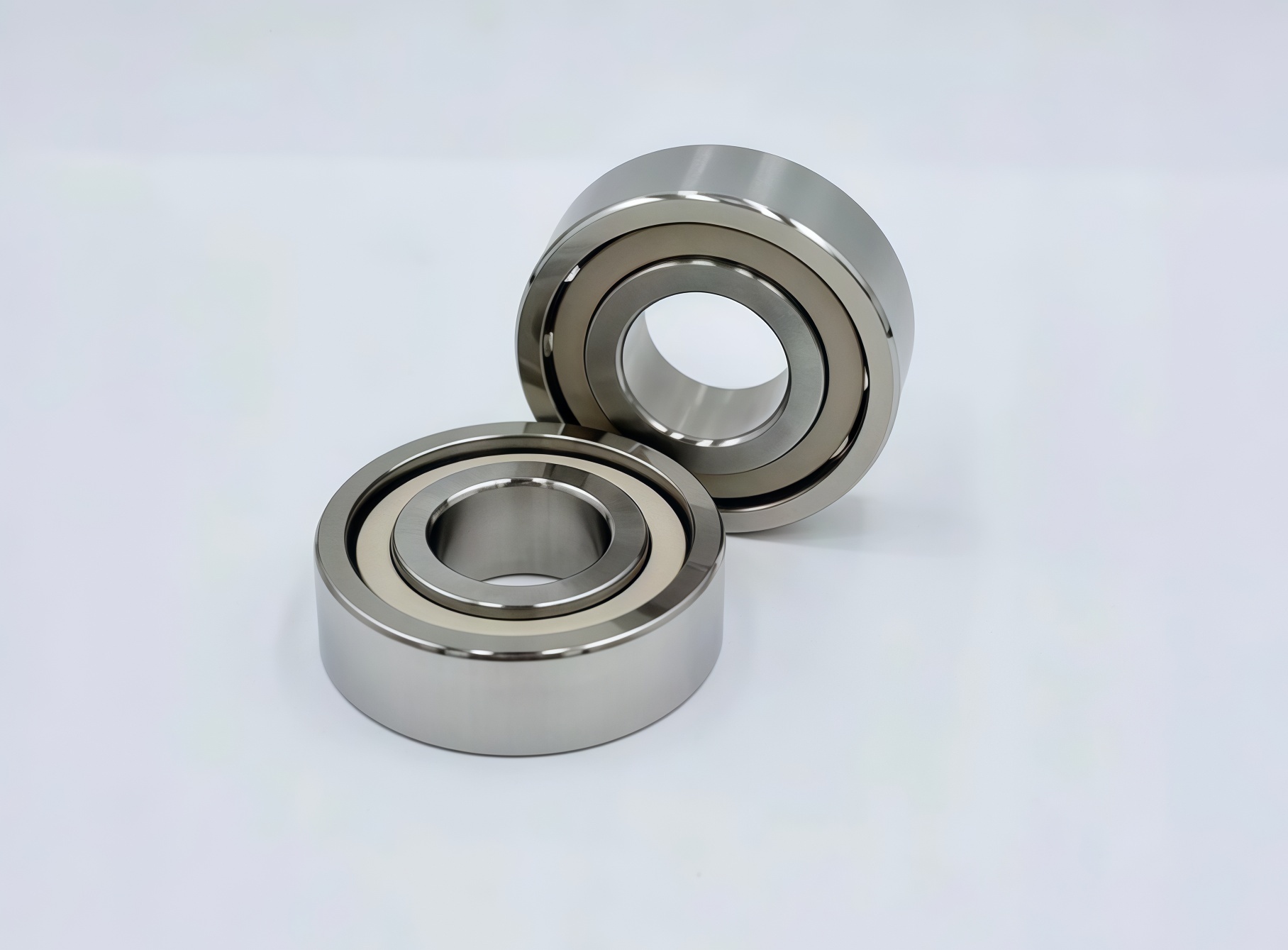

Recently, Canin Industrial launched its new 7204 hybrid ceramic stainless steel angular contact ball bearing. This model is a hybrid ceramic angular contact ball bearing specially designed for high-precision, high-speed, and corrosion-resistant applications. It features 440C stainless steel raceways, Si₃N₄ silicon nitride ceramic balls as rolling elements, and PEEK solid cage guidance. Shipped in back-to-back (DB) configurations, it balances high speed, insulation, corrosion resistance, and high rigidity, making it a preferred choice for ultra-clean environments in the semiconductor, medical and pharmaceutical, and chemical industries.

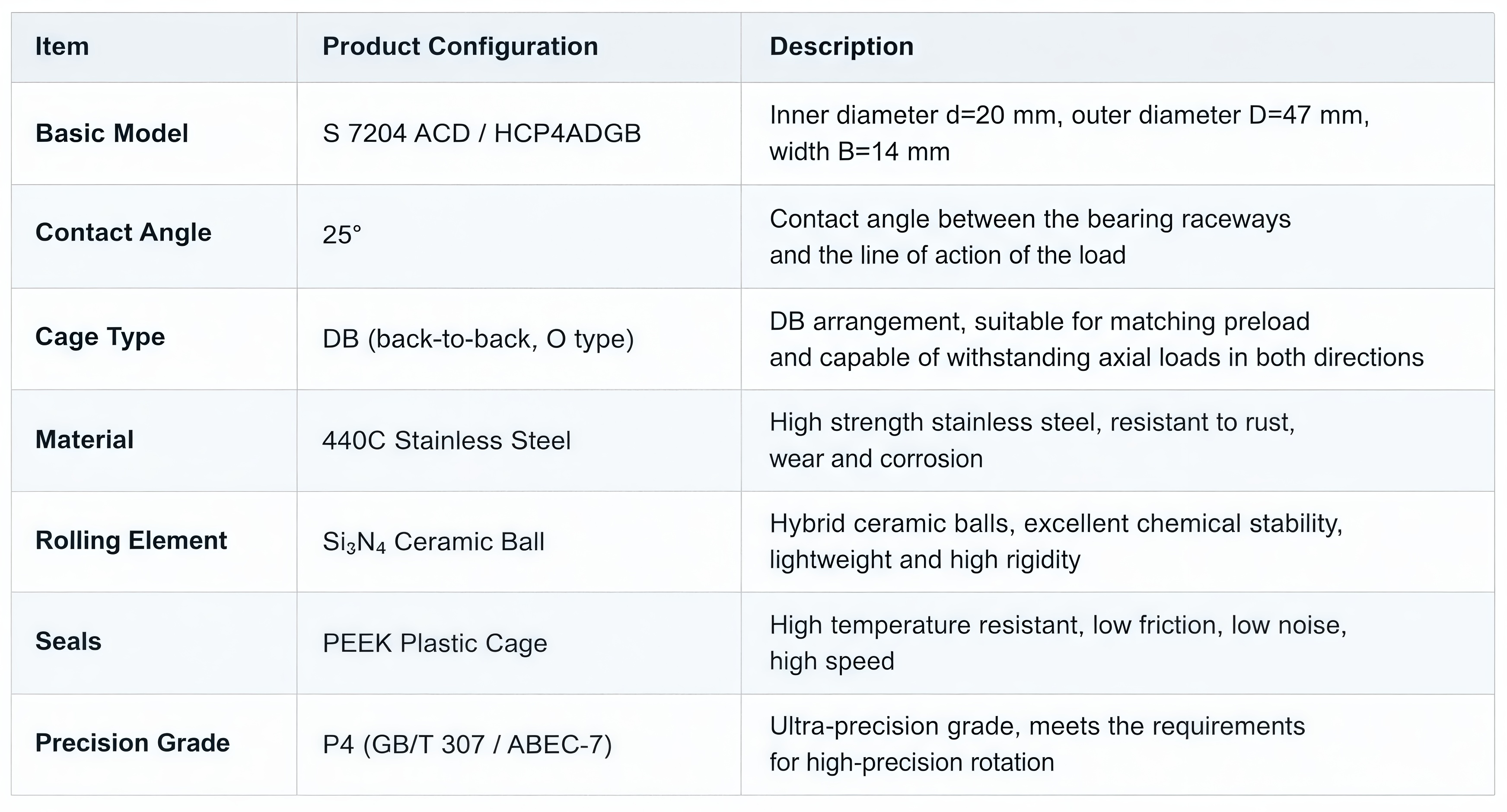

I. Model Configuration
II. Core Features
1. Si₃N₄Silicon Nitride Ceramic Balls: High-speed, insulating, and high-rigidity
Ceramic balls have a density of only about 40% that of steel balls, which significantly reduces centrifugal force and inertial torque during high-speed operation, allowing for higher speeds and significantly suppressing temperature rise. Their elastic modulus is higher than that of bearing steel, resulting in less deformation of the rolling elements and higher bearing rigidity. At the same time, ceramics are electrical insulators, which can fundamentally block shaft current and stray current in variable frequency motors and variable frequency drive systems, completely avoiding raceway erosion, pitting, and early abnormal noise failure.
2. 440C stainless steel bushings: corrosion resistant and adaptable to harsh environments.
The bearing rings are made of 440C high-carbon martensitic stainless bearing steel. After quenching and tempering, they have high hardness and good corrosion resistance. They can work for a long time in humid, salt spray, water vapor and weakly corrosive conditions, avoiding the rust, pitting and dimensional instability of ordinary bearing steel bearing rings. They are suitable for marine, food, chemical and outdoor precision equipment.
3. PEEK solid retainer: High temperature, low noise, high speed and reliable
PEEK (polyetheretherketone) is characterized by high temperature resistance, self-lubrication, low friction, and low density. Its solid guiding structure is stable at high speeds with low vibration and noise. It also has good compatibility with ceramic balls and stainless steel rings, and will not produce wear debris or electrochemical corrosion of metal retainers, thus extending the life of grease and the maintenance cycle of bearings.
4. 25° contact angle: Balanced axial and radial performance
A 25° contact angle offers greater axial load capacity and axial rigidity compared to 15°, while retaining higher radial speed capability compared to 30°. It is a compromise that balances radial load, bidirectional axial positioning, and high speed, making it suitable for complex load applications such as spindles, lead screw supports, and servo motors.

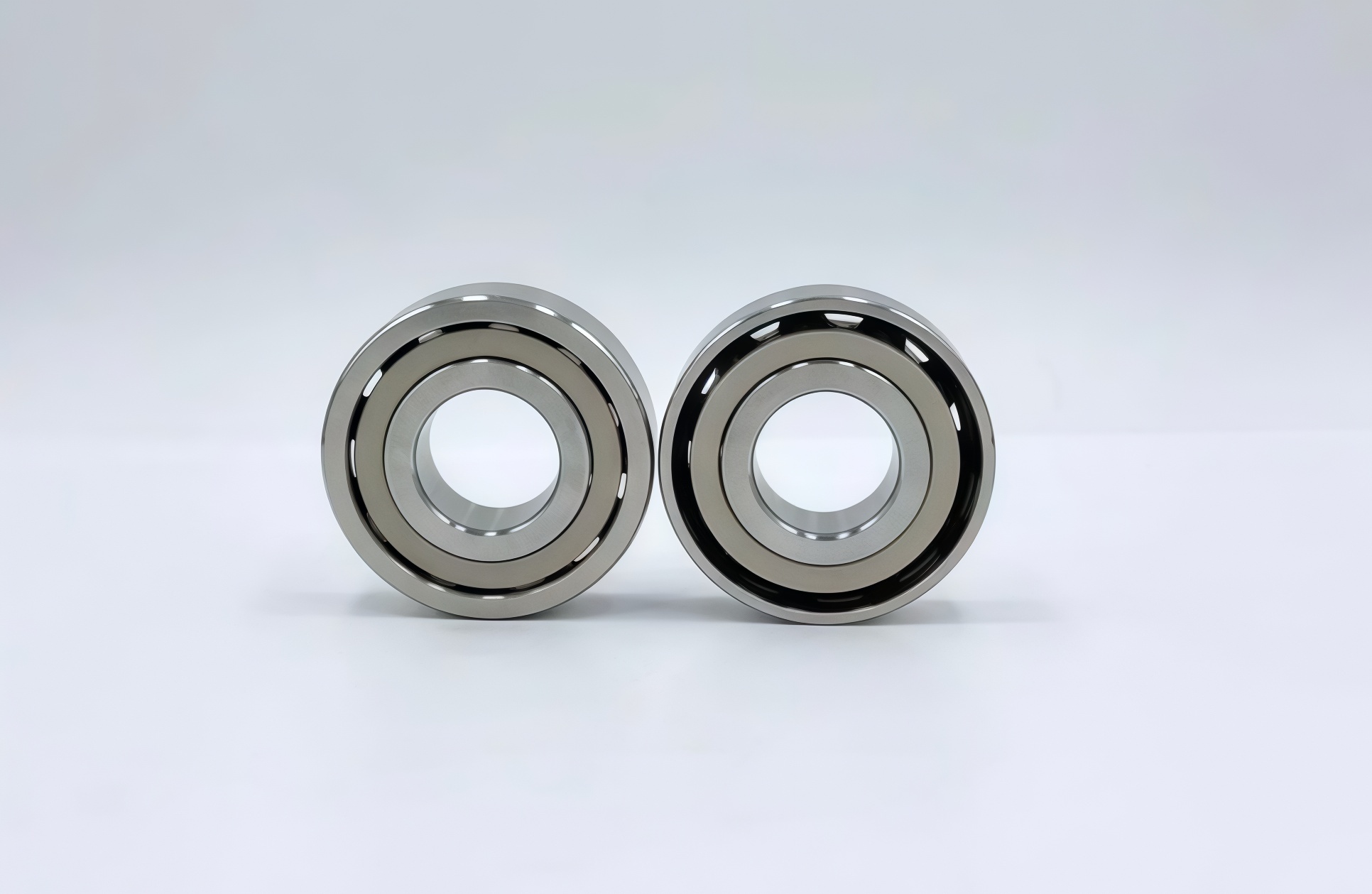

5. DB back-to-back pairing: bidirectional rigidity and anti-overturning moment
The two rows of rolling contact lines in the back-to-back (DB/O type) configuration are arranged divergently along the axis, which can simultaneously withstand axial loads and overturning moments in two directions, providing high support rigidity and rotational accuracy. They are shipped in pairs with uniform preload selection to avoid on-site matching errors by users, and stable preload and rigidity performance can be obtained immediately upon installation.
6. P4 Ultra-Precision: Rotational Accuracy and Stability
The dimensional tolerances and rotational accuracy of the raceways and rolling elements are controlled according to P4 grade (GB/T 307/ABEC-7). Combined with the high rigidity of the ceramic balls and the low vibration of the PEEK retainer, the rotational accuracy, consistency and long-term stability of the spindle and precision transmission can be guaranteed.
• Automated precision transmission units with high requirements for temperature rise, noise, rigidity, and lifespan

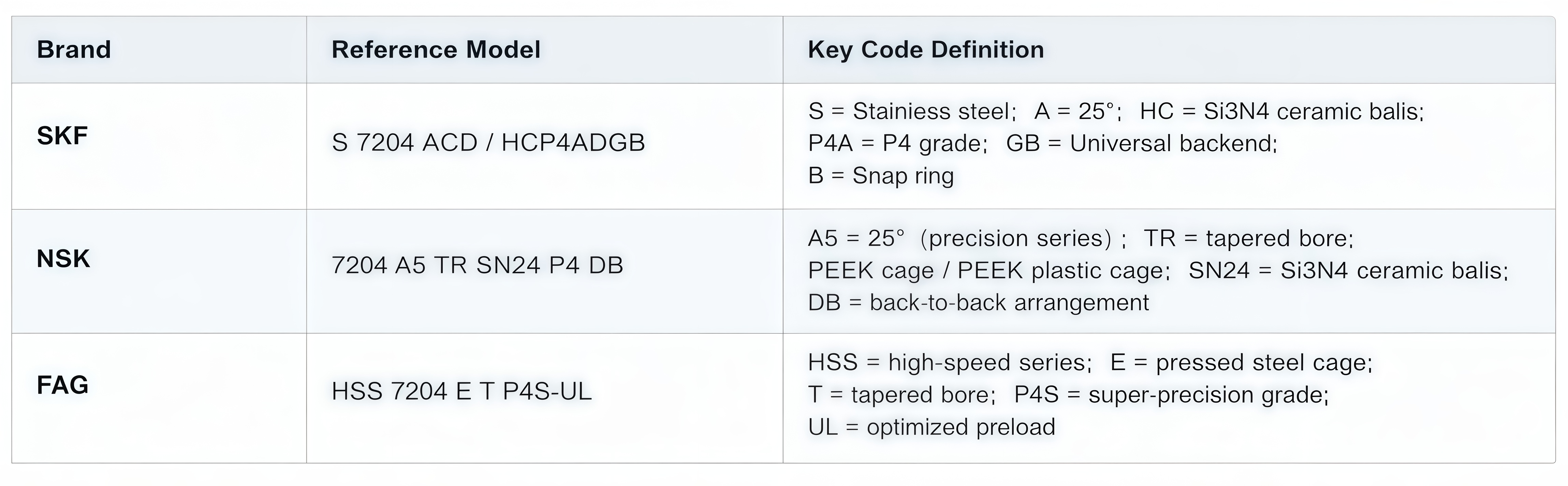

IV. This configuration can be compared according to international brand codes as follows:
(Note: The 440C stainless steel bushing stacked with Si₃N₄ ceramic balls is a special mixed ceramic configuration. It is limited in stock in the international brand standard catalog and is mostly customized according to order codes. Our company can directly produce corresponding specifications according to the contact angle of imported brands, replacing imported brands, shortening the delivery time and reducing costs.)
This 7204 hybrid ceramic stainless steel angular contact ball bearing, with its 25° contact angle, DB back-to-back preload, PEEK solid retainer, 440C stainless steel rings and Si₃N₄ ceramic balls, achieves comprehensive performance in terms of high speed and low temperature rise, insulation and anti-electrolytic corrosion, corrosion resistance, high rigidity and low noise. It is a highly reliable choice for high-end precision spindles, variable frequency servo motors and precision transmission in corrosive environments.
Liaocheng Zhuoyi Bearing Co., Ltd. will participate in the 2026 China International Bearing and Special Equipment Exhibition with two booths: 3HF074 & 41D048. At that time, the main products will include high-precision hybrid ceramic ball bearings, a full range of 440C stainless steel bearings, servo motor bearings, vacuum pump bearings, 440C ultra-thin wall bearings with various cross sections, cryogenic bearings, reactor bearings, food and beverage bearings, new energy vehicle bearings, and special customized high-precision bearings.
