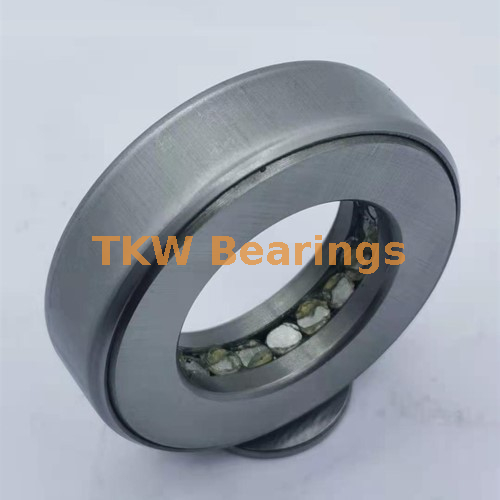

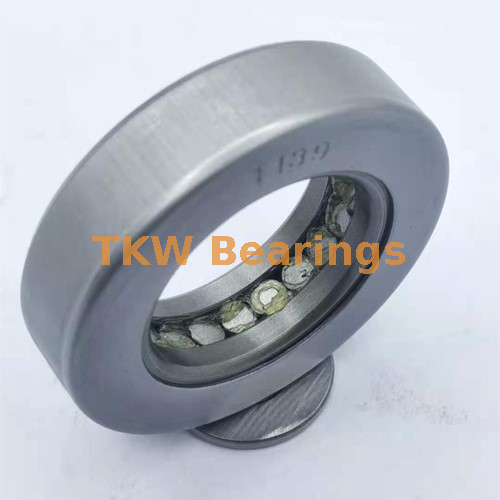

Steering King Pin Tapered Thrust Bearing T1380 for Fork Lift Trucks

Designation: T1380 Bearings

Type: Thrust Roller Taper Bearings

Dimension: 35.179*59.400*15.875mm

Application: King Pin Thrust Bearings

Weight: 0.35kg

Stock: 200pcs

Materials: Chrome Steel / 52100 Bearing Quality Steel

Feature: Full Rollers

Brand: EASIER

Origin: China

Suffix of RBC Tapered Thrust Bearings

T- Tapered Thrust Bearings

S- Sealed

W- Oil Holes in Retainer

C - Cylidrical Roller

GX - Greased

Indicates Bore Diameter of RBC Tapered Thrust Bearings

T1380 =1.385" bore

T88 = .885" bore

T101 = 1.01" bore

Thrust Tapered Roller Bearings T1380 for King Pin

· Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.

· Full complement design (cageless).

· These thrust bearings are specifically designed for oscillating applications.

· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.

               King Pin Bearing with Tapered Roller                       King Pin Bearing with Ball             King Pin Bearing with Metal Shell

King Pin Bearings T1380 also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.

The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.

Applications of King Pin Bearings T1380

-- Heavy Vehicles & other automobiles,

-- Marine engines,Agricultural equipment's,

-- Steering,

-- Light Vehicles,

-- Industrial movers,

-- Fork lift trucks,

-- Conveyors,

-- Construction machinery,

Features of Thrust Tapered Roller Bearings

-- Excellent prevention from overrunning & backstopping

-- Self-Aligned ,

-- High load sustaining capacity

-- Seal excludes contamination with a separator and bore liner,

-- Prevent rotational damage,

-- Get automatically locked when rolled in opposite direction

The Kingpin Bearing is capable of bearing thrust pressure in various industrial pump applications and possesses high resistivity and durability. These are constructed using high grade raw materials, which are tested under the supervision of experienced professionals. Kingpin bearing is the main pivot in the steering mechanism of a car or other vehicles.

TKW Bearings can supply complete Thrust Bearings

1. Thrust Ball Bearings

2. Thrust King Pin Bearings.

3. Thrust Tapered Roller Bearings

4. Thrust Cylindrical Roller Bearings

5. Thrust Spherical Roller Bearings

6. Thrust needle roller Bearings

7. Crossed Roller Thrust bearings

EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings T1380 & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW from China etc. Our products are the same design and replace them for customers on the market.
