Why TKW Spherical Roller Bearings?

Why TKW Spherical Roller Bearings?

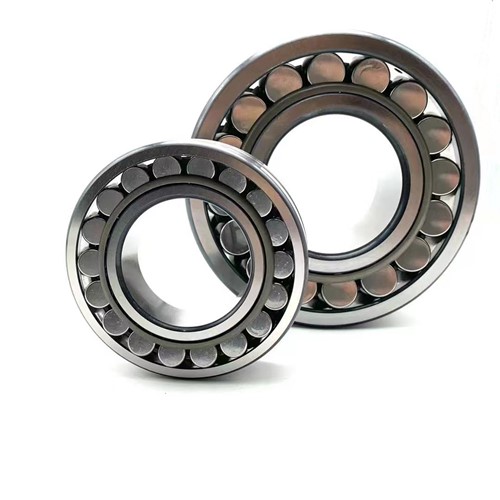

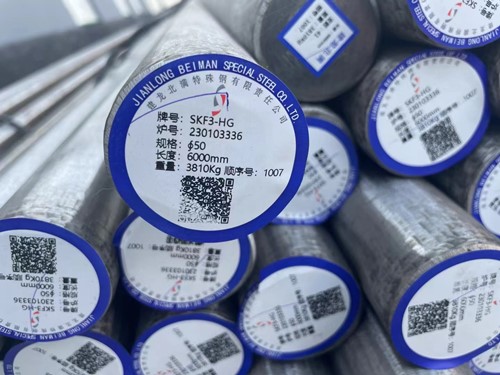

You can see the photo of this page, there are our new Spherical Roller Bearings with E cage, which adopt the SKF3-HG chrome steel, the Bearing professionals known that the level of this kind of steel, TKW ensures the reliability and stability of Spherical Roller Bearings quality at the source.

The assortment of TKW spherical roller bearings is the widest available on the market. The standard assortment includes:

-- CC, CA and E design bearings，CA, MB Cage design Bearings, EAE4, CDE4,CAME4 Cage design bearings, EJ,YMB Cage bearings etc.

-- Sealed bearings, BS2 series Spherical Roller Bearings

-- application specific bearings for example CCJA Cage design.

Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with TKW spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life. TKW invented this bearing type in 2008 and our range is the widest in the industry today – both open and sealed. Our assortment includes spherical roller bearings designed for many applications, including continuous casters, vibratory applications and high-speed applications, as well as bearings with Solid Oil, split bearings, TKW ConCentra roller bearing units, and, for the harshest operating environments, our TKW three-barrier solution.

Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer ring raceway surface coincides with the bearing axis.

Features of TKW Spherical Roller Bearings

• Self-aligning
  The bearing automatically compensates for deviation in the shaft center and bending in the housing or shaft, preventing excessive force from being applied to it.

• Support for all types of loads
  Spherical roller bearings sustain radial loads, axial loads in both directions, and combined loads.

• For fixed-end or free-end

Applications of Spherical Roller Bearings

• High load capacity
  Suited for applications involving large radial loads, heavy loads, and impact loads

• Mining equipment (powdering machines, vibrating screens, conveyors, etc.), gearboxes, air preheaters, extruders, centrifugal separators, construction machinery, steelmaking machinery, papermaking machines
