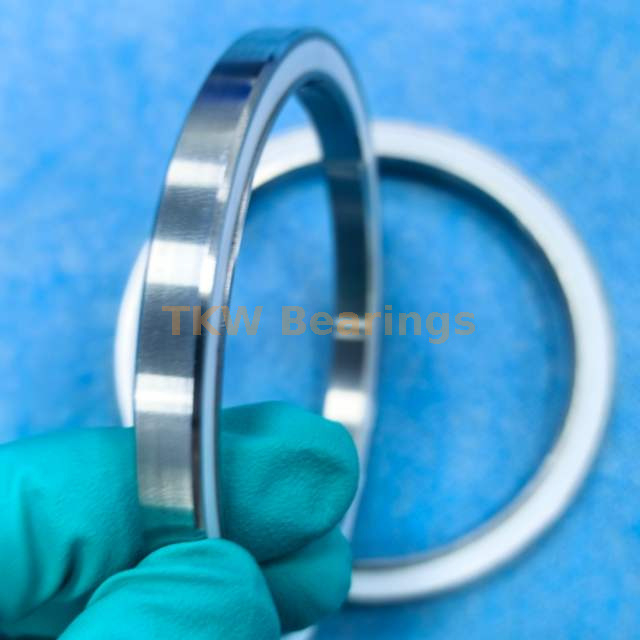

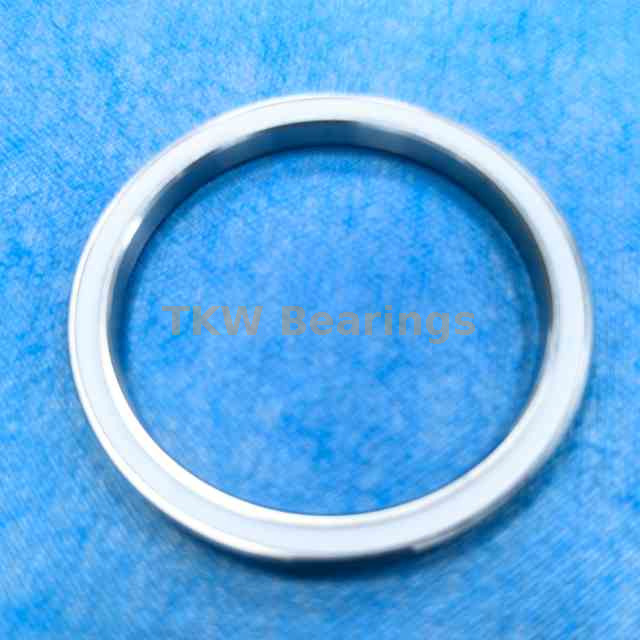

High-precision 440C Stainless Steel SD075AR0 Bearing

PRODUCT

You are here: Home » Products » Thin Section Bearings » High-precision 440C Stainless Steel SD075AR0 Bearing

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Category

Contact Us

+86-635-8509787
+86-13280450757
sales@xrbearing.com
Yandian Industrial Zone, Liaocheng City, ShanDong Province. China
Skype: brandbearings

Model:
SD075AR0
Brand:
TKW
Item:
Thin Section Bearing

SD075AR0 bearing data display

Bearing Model	Dimensions in Inches				Capacities in Pounds			Approx.Wt. In lbs.
	Size		Land Diameters		Dynamic	Static
SD075AR0	Bore	Outside Dia.	L1	L2	Thrust	Radial	Thrust
	7.000	8.000	7.370	7.630	5,990	5,920	17,100	1.33

Technical information.

Metric

Imperial

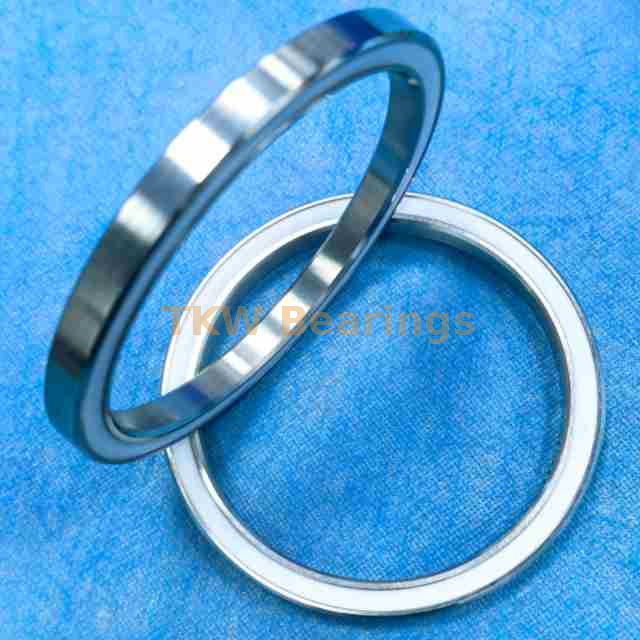

SD075AR0 Thin Section Bearing
d	7.5 in	aperture
D	8.5 in	outer diameter
H	0.5 in	width
B	0.5 in	Radial cross-section
d1	≈ 7.87 in	Inner ring rib diameter
D1	≈ 8.13 in	Outer ring flange diameter
D4	≈ 8.236 in	Outer ring flange diameter
	0.25 in	Ball diameter
	0.06 in	Maximum chamfer radius of shaft or bearing

SD075AR0 Thin Section Bearing
d	190.5 mm	aperture
D	215.9 mm	outer diameter
H	12.7 mm	width
B	12..7 mm	Radial cross-section
d1	≈199.898 mm	Inner ring rib diameter
D1	≈206.502 mm	Outer ring flange diameter
D4	≈209.194 mm	Outer ring flange diameter
	6.35 mm	Ball diameter
	1.524 mm	Maximum chamfer radius of shaft or bearing

AISI 440C stainless steel thin section bearings are designed for applications requiring corrosion resistance, wear resistance and high running accuracy. The rings and balls can be manufactured from AISI 440C stainless steel in accordance with AMS 5630. This material is suitable for precision bearing arrangements where resistance to rusting and stable rolling contact performance are important. The final bearing selection should be based on the actual load, speed, lubrication, contamination level and operating environment.
