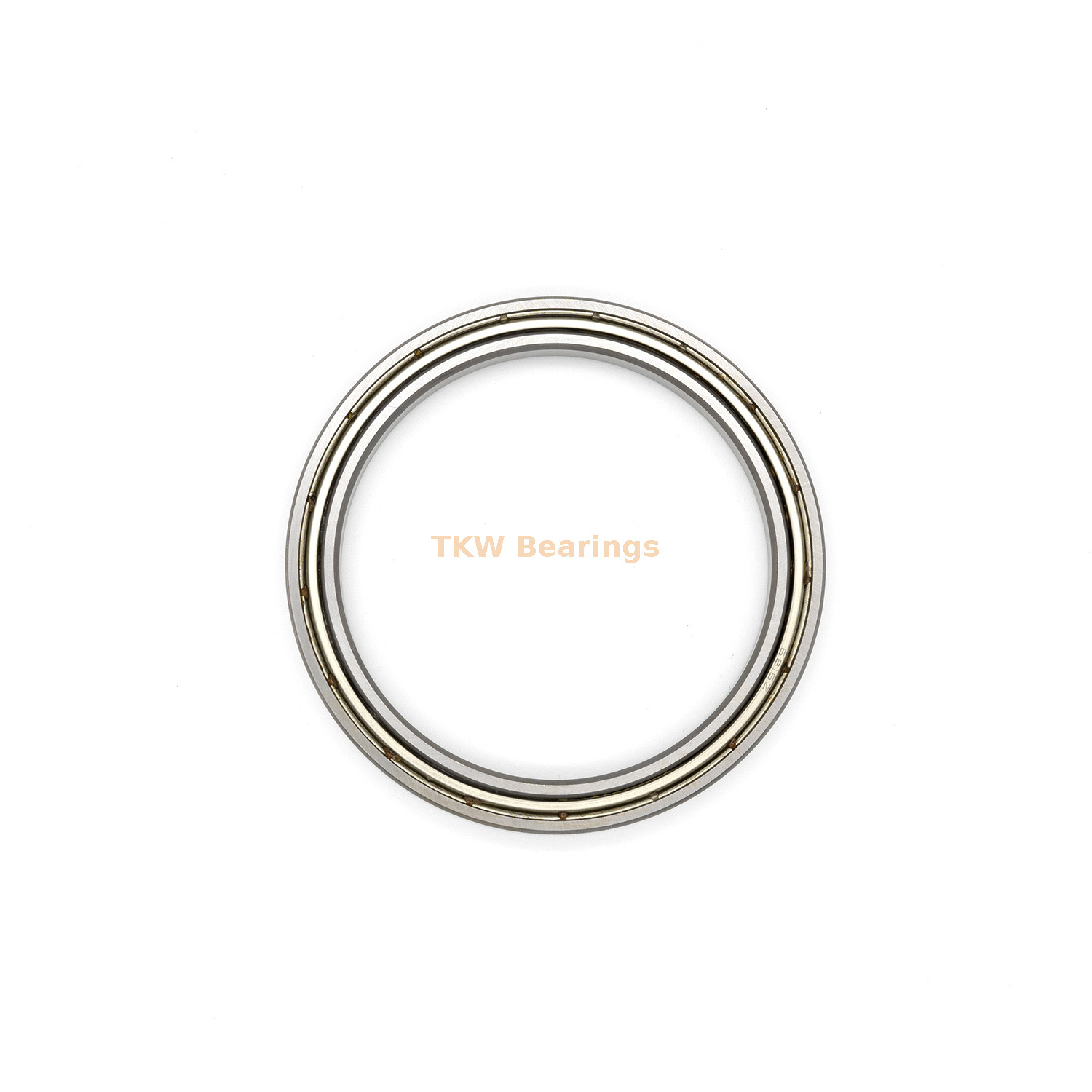

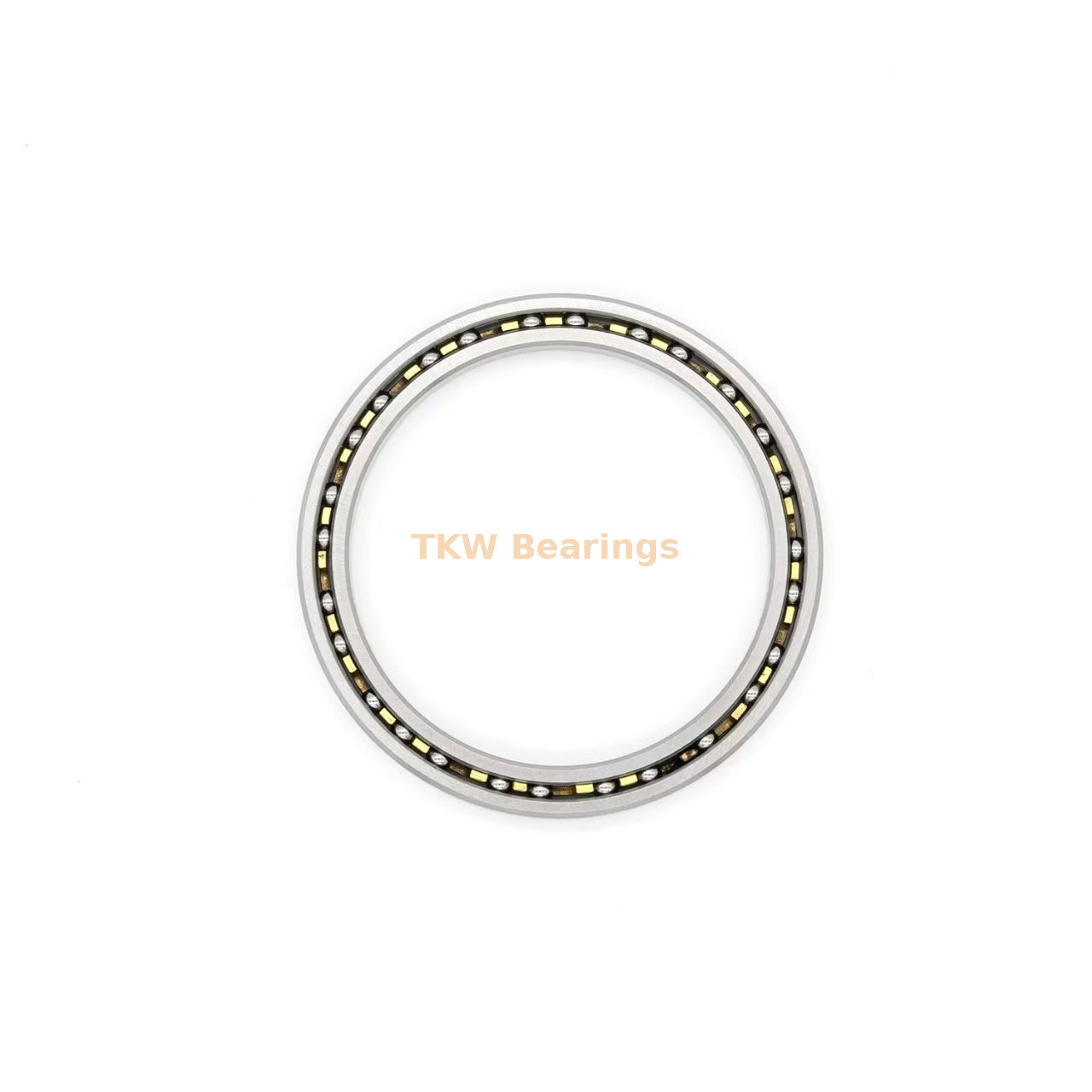

Open Radial Contact Deep Groove Equal Cross-section Bearings KF-CP0 Series
KF-CP0 is an open C-type radial contact deep groove ball bearing, The cross-section is always 19.05mm. Its core features are equal cross-section thin-wall design, lightweight, compact size, and low friction torque. It mainly bears radial loads and is not suitable for large cover torque and large thrust conditions.
Maximum radius of chamfer on shaft or bearing housing
KF042CP0 Thin Section Bearing
d
107.95 mm / 4.25 in
aperture
D
146.05 mm / 5.75 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 122.047 mm / 4.805 in
Inner ring flange diameter
D1
≈ 131.953 mm / 5.195 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF045CP0 Thin Section Bearing
d
114.3 mm / 4.5 in
aperture
D
152.4 mm / 6 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 128.397 mm / 5.055 in
Inner ring flange diameter
D1
≈ 138.303 mm / 5.445 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF047CP0 Thin Section Bearing
d
120.65 mm / 4.75 in
aperture
D
158.75 mm / 6.25 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 134.747 mm / 5.305 in
Inner ring flange diameter
D1
≈ 144.653 mm / 5.695 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF050CP0 Thin Section Bearing
d
127 mm / 5 in
aperture
D
165.1 mm / 6.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 141.097 mm / 5.555in
Inner ring flange diameter
D1
≈ 151.003 mm / 5.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF055CP0 Thin Section Bearing
d
139.7 mm / 5.5 in
aperture
D
177.8 mm / 7 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 153.797 mm / 6.055 in
Inner ring flange diameter
D1
≈ 163.703 mm / 6.445 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF060CP0 Thin Section Bearing
d
152.4 mm / 6 in
aperture
D
190.5 mm / 7.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 166.497 mm / 6.555 in
Inner ring flange diameter
D1
≈ 176.403 mm / 6.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF065CP0 Thin Section Bearing
d
165.1 mm / 6.5 in
aperture
D
203.2 mm / 8 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 179.197 mm / 7.055 in
Inner ring flange diameter
D1
≈ 189.103 mm / 7.445 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF070CP0
KF075CP0
KF080CP0
KF090CP0
KF100CP0
KF110CP0
KF120CP0
KF140CP0
KF070CP0 Thin Section Bearing
d
177.8 mm / 5 in
aperture
D
215.9 mm / 5.625 in
outer diameter
B
19.05 mm / 0.3125 in
radial cross section
H
19.05 mm / 0.3125 in
width
d1
≈ 191.897 mm / 5.231 in
Inner ring flange diameter
D1
≈ 201.803 mm / 5.393 in
Outer ring flange diameter
9.525 mm / 0.1563 in
sphere diameter
2.032 mm / 0.04 in
Maximum radius of chamfer on shaft or bearing housing
KF075CP0 Thin Section Bearing
d
190.5 mm / 7.5 in
aperture
D
228.6 mm / 9 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 204.597 mm / 8.055 in
Inner ring flange diameter
D1
≈ 214.503 mm / 8.445 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF080CP0 Thin Section Bearing
d
203.2 mm / 8 in
aperture
D
241.3 mm / 9.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 217.279 mm / 8.555 in
Inner ring flange diameter
D1
≈ 227.203 mm / 8.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF090CP0 Thin Section Bearing
d
228.6 mm / 9 in
aperture
D
266.7 mm / 10.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 242.697 mm / 9.555 in
Inner ring flange diameter
D1
≈ 252.603 mm / 9.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF100CP0 Thin Section Bearing
d
254 mm / 10 in
aperture
D
292.1 mm / 11.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 268.097 mm / 10.555 in
Inner ring flange diameter
D1
≈ 278.003 mm / 10.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF110CP0 Thin Section Bearing
d
279.4 mm / 11 in
aperture
D
317.5 mm / 12.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 293.497 mm / 11.555 in
Inner ring flange diameter
D1
≈ 303.403 mm / 11.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF120CP0 Thin Section Bearing
d
304.8 mm / 12 in
aperture
D
342.9 mm / 13.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 318.897 mm / 12.555 in
Inner ring flange diameter
D1
≈ 328.803 mm / 12.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF140CP0 Thin Section Bearing
d
355.6 mm / 14 in
aperture
D
393.7 mm / 15.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 369.697 mm / 14.555 in
Inner ring flange diameter
D1
≈ 379.603 mm / 14.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF160CP0
KF180CP0
KF200CP0
KF250CP0
KF300CP0
KF350CP0
KF400CP0
KF160CP0 Thin Section Bearing
d
406.4 mm / 16 in
aperture
D
444.5 mm / 17.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 420.497 mm / 16.555 in
Inner ring flange diameter
D1
≈ 430.403 mm / 16.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF180CP0 Thin Section Bearing
d
457.2 mm / 18 in
aperture
D
495.3 mm / 19.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 471.297 mm / 18.555 in
Inner ring flange diameter
D1
≈ 481.203 mm / 18.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF200CP0 Thin Section Bearing
d
508 mm / 20 in
aperture
D
546.1 mm / 21.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 522.097 mm / 20.555 in
Inner ring flange diameter
D1
≈ 532.003 mm / 20.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF250CP0 Thin Section Bearing
d
635 mm / 25 in
aperture
D
673.1 mm / 26.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 649.097 mm / 25.555 in
Inner ring flange diameter
D1
≈ 659.003 mm / 25.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF300CP0 Thin Section Bearing
d
762 mm / 30 in
aperture
D
800.1 mm / 31.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 776.097 mm / 30.555 in
Inner ring flange diameter
D1
≈ 786.003 mm / 30.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF350CP0 Thin Section Bearing
d
889 mm / 35 in
aperture
D
927.1 mm / 36.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 903.097 mm / 35.555 in
Inner ring flange diameter
D1
≈ 913.003 mm / 35.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
KF400CP0 Thin Section Bearing
d
1016 mm / 40 in
aperture
D
1054.1 mm / 41.5 in
outer diameter
B
19.05 mm / 0.75 in
radial cross section
H
19.05 mm / 0.75 in
width
d1
≈ 1030.097 mm / 40.555 in
Inner ring flange diameter
D1
≈ 1040.003 mm / 40.945 in
Outer ring flange diameter
9.525 mm / 0.375 in
sphere diameter
2.032 mm / 0.08 in
Maximum radius of chamfer on shaft or bearing housing
Three main materials are used for Thin Section Bearings. The standard model features high-carbon chromium bearing steel for the inner and outer rings and rolling elements, making it suitable for conventional drying conditions. The corrosion-resistant version features stainless steel inner and outer rings and rolling elements, making it suitable for humid and corrosive working environments. The ceramic hybrid version adopts a composite structure, with the inner and outer rings made of bearing steel and the rolling elements made of ceramic material, making it suitable for special working conditions such as high speed, low friction, and high temperature resistance. All cages are typically made of nylon or brass and are responsible for separating and positioning the rolling elements, providing structural support for stable bearing operation.
Due to their stable precision and structure, thin Section Bearings are widely used in industrial and civil sectors. In the field of electromechanical power, it is widely used in the spindles and power transmission components of various small and medium-sized motors; in the field of automation, it is applied to assembly line transmission units, precision motion modules, and moving joints of intelligent equipment. In the fields of civil and general machinery, it is compatible with ventilation equipment, water supply pumps, and transmission structures of household appliances. Different precision levels can be selected as needed, with strong overall compatibility. The protective structure can cope with normal field environments and meet the requirements for long-term continuous operation of the equipment.
We can provide you with high-quality bearings. Please feel free to contact us if you have any questions!
