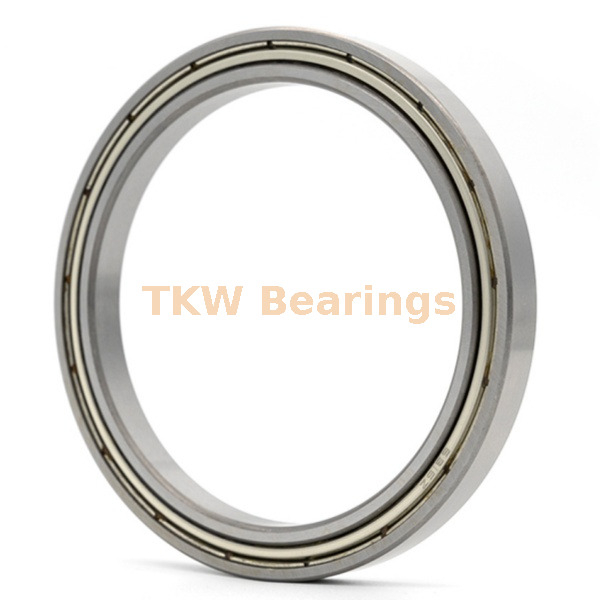

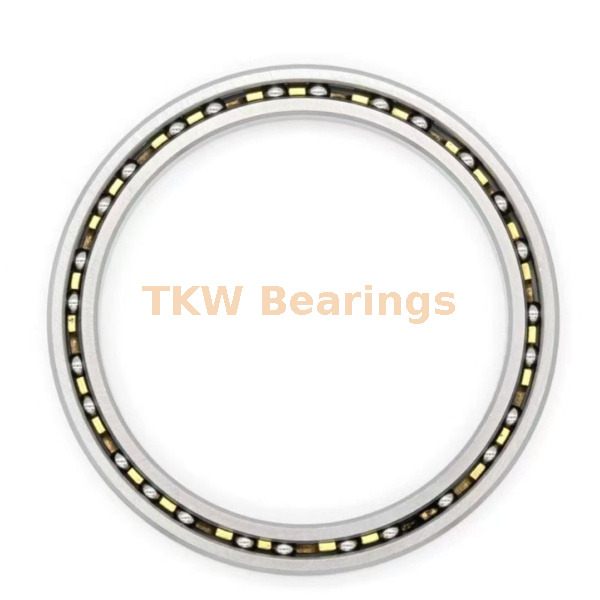

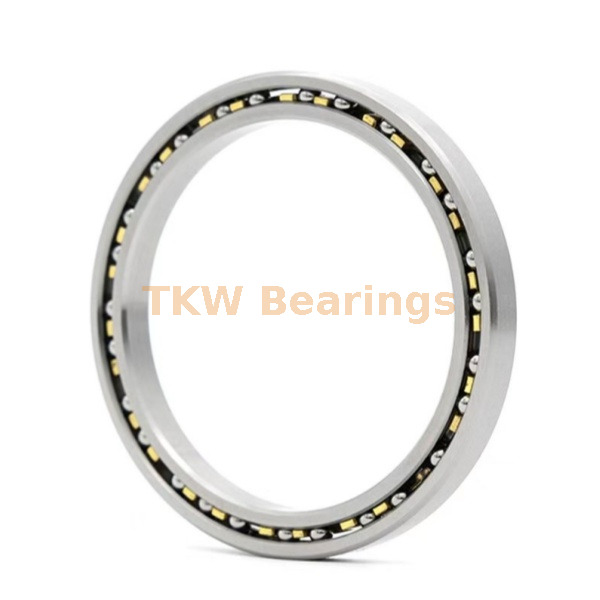

SB030AR0
TKW
Thin Section Bearing
Bearing Model | Dimensions in Inches | Capacities in Pounds | Approx.Wt. In lbs. | |||||
Size | Land Diameters | Dynamic | Static | |||||
SB030AR0 | Bore | Outside Dia. | L1 | L2 | Thrust | Radial | Thrust | |
3.000 | 3.625 | 3.231 | 3.393 | 1,750 | 1,550 | 4,470 | .22 | |
Metric
Imperial
| SB030AR0 Thin Section Bearing | ||||
| d | 3 in | aperture | ||
| D | 3.625 in | outer diameter | ||
| H | 0.3125 in | width | ||
| B | 0.3125 in | Radial cross-section | ||
| d1 | ≈ 3.231 in | Inner ring rib diameter | ||
| D1 | ≈ 3.393 in | Outer ring flange diameter | ||
| D4 | ≈ 3.462 in | Outer ring flange diameter | ||
| 0.1563 in | Ball diameter | |||
| 0.04 in | Maximum chamfer radius of shaft or bearing | |||
| SB030AR0 Thin Section Bearing | ||||
| d | 76.2 mm | aperture | ||
| D | 92.075 mm | outer diameter | ||
| H | 7.938 mm | width | ||
| B | 7.938 mm | Radial cross-section | ||
| d1 | ≈82.067 mm | Inner ring rib diameter | ||
| D1 | ≈86.182 mm | Outer ring flange diameter | ||
| D4 | ≈87.935 mm | Outer ring flange diameter | ||
| 3.969 mm | Ball diameter | |||
| 1.016 mm | Maximum chamfer radius of shaft or bearing | |||
The long-term stability of 440C stainless steel thin-section bearings represents the bearing's ability to maintain its original performance under continuous operation over a long period of time. Even if the initial accuracy meets the standard, the raceway will slowly wear under the continuous action of load, speed and environmental medium, which will gradually cause the rotational accuracy to decrease. Thin-walled ring structures are more sensitive to continuous stress, and long-term overload can cause irreversible deformation. The 440C material can reduce the risk of failure caused by rust, but it cannot completely avoid normal operation losses. Properly matching operating conditions and ensuring proper lubrication and sealing can slow down performance degradation and guarantee the long-term stable operation of bearings.
