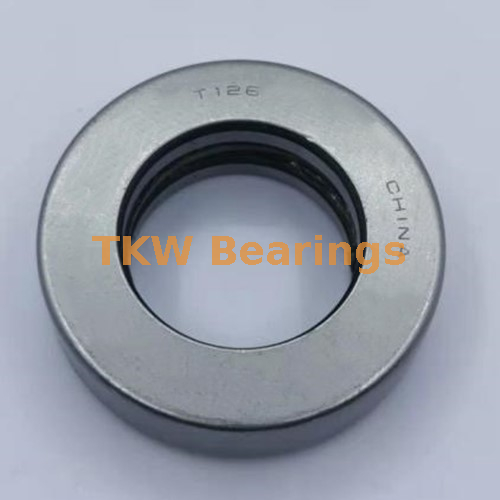

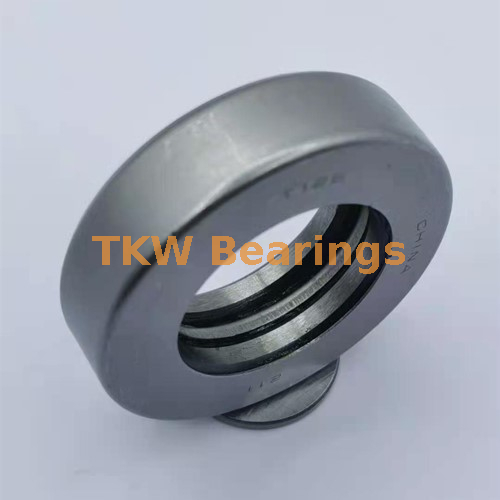

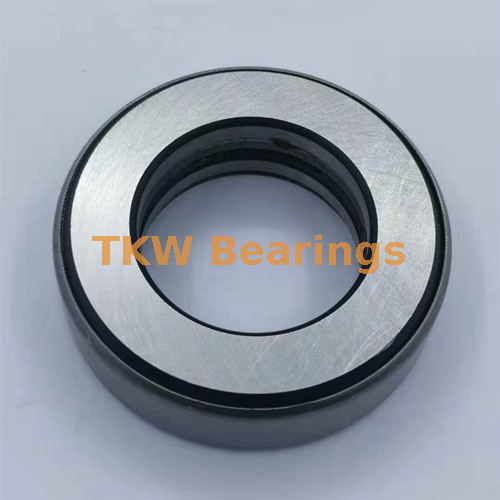

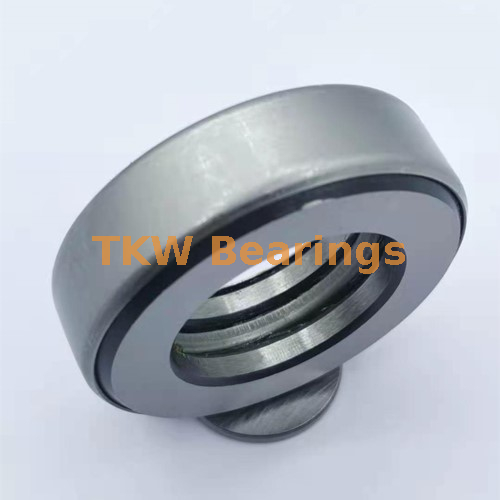

Tapered Thrust Bearing T126 for Construction Machinery

Designation: T126 Bearings

Type: Thrust Roller Taper Bearings with rubber seals cover

Dimension: 32.004*55.562*15.875mm

Application: King Pin Thrust Bearings

Weight: 0.2kg

Stock: 200pcs

Materials: Chrome Steel

Feature: Full Rollers

Brand: EASIER

Origin: China

Thrust Tapered Roller Bearings T126 for King Pin

· Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.

· Full complement design (cageless).

· These thrust bearings are specifically designed for oscillating applications.

· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.

               King Pin Bearing with Tapered Roller                       King Pin Bearing with Ball             King Pin Bearing with Metal Shell

King Pin Bearings T126 also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.

The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.

Manufacturer's Part Numbers:

• ATB A748

• ATB A234

• Aetna A2845

• ABC N873

• Timken T126S

• Timken BT126

• Timken 799150

• SNR 7730126

• SKF T126

• SKF KBT126

• SKF K-T126

• RANSOMES 83300033

• NTN ECRT0653PX1

• NICE N873

• NICE N1329

• NICE 4975-1

• LANSING 5012-02

• IRB IRM126

• FAG 532796

• FAG 502431

• FAG 501103

• FAG 501102

• FAG 501100

Applications of King Pin Bearings T126

-- Heavy Vehicles & other automobiles,

-- Marine engines,Agricultural equipment's,

-- Steering,

-- Light Vehicles,

-- Industrial movers,

-- Fork lift trucks,

-- Conveyors,

-- Construction machinery,

Features of Thrust Tapered Roller Bearings

-- Excellent prevention from overrunning & backstopping

-- Self-Aligned ,

-- High load sustaining capacity

-- Seal excludes contamination with a separator and bore liner,

-- Prevent rotational damage,

-- Get automatically locked when rolled in opposite direction

EASIER is one of China Bearing manufacturers and exporter of King Pin Bearings with steel ball or steel rollers, also written as king-pin or king pin, is a very important component in any vehicle. It is the main pivot in the mechanism of steering in any vehicle. King Pins are also used as fifth wheel coupling apparatus in vehicles. King Pins have an important property of being able to carry heavier weights and therefore can be mostly seen in Large or Heavy Vehicles.

The Kingpin Bearing is capable of bearing thrust pressure in various industrial pump applications and possesses high resistivity and durability. These are constructed using high grade raw materials, which are tested under the supervision of experienced professionals. Kingpin bearing is the main pivot in the steering mechanism of a car or other vehicles.

EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings T126 & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW from China etc. Our products are the same design and replace them for customers on the market.
