Item:
6218-J20AA-C3
Price:
Bearing 6218-J20AA-C3 price

Details

Keywords:FAG 6218-J20AA-C3 bearing,6218-J20AA-C3 insulated bearing

FAG 6218-J20AA-C3 bearing is insulated deep groove ball bearing and Ball Bearings with a Ceramic Coating, The coatings are subjected to a 100% quality inspection and guarantee a dielectric strength of at least 1000 VDC (J20AA, J20C) or 500 VDC (J20B), respectively. this kind of bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

FAG 6218-J20AA-C3 bearing suitable for high and middle high speed,but low cost maintenance.FAG as one of the biggest top quality bearing brand,Quality can be approved by the market.

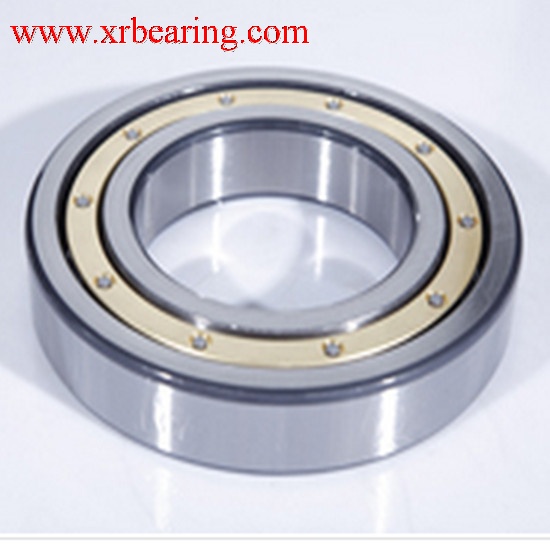

FAG 6218-J20AA-C3 insulated deep groove ball bearing

High speed 6218-J20AA-C3 insulated bearing	FAG 6218-J20AA-C3 Bearing 90×160×30mm bearing
FAG 6218-J20AA-C3 Bearing type	Insulated deep groove ball bearing
inner diameter	90mm
outer diameter	160mm
width diameter	30mm
FAG 6218-J20AA-C3 insulated deep groove ball bearing weight	2.21kg
FAG bearing are available from many design, variants, series and size, ►FAG deep groove ball bearing with a coated inner ring or outer ring,with seals on both sides and radial clearance C3 ►FAG 6218-J20AA-C3 bearing with brass cage can accommodate very heavy radial loads and very high speeds,	Design: 6218-J20AA-C3
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:96.5kN ►static load rating:72kN ►Fatigue load limit:4.2kN ►Reference speed:5100r/min ►limiting speed:9000r/min
FAG 6218-J20AA-C3 bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the FAG 6218-J20AA-C3 bearing exporter & supplier,it can supply FAG F-6218-J20AA-C3 bearing, Our large quantity FAG insulated deep groove ball bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER 6218-J20AA-C3 Bearing, the other type and brand insulated deep groove ball bearing

insocoat deep groove ball bearing
FAG Current-Insulated Bearings

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality FAG 6218-J20AA-C3 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
